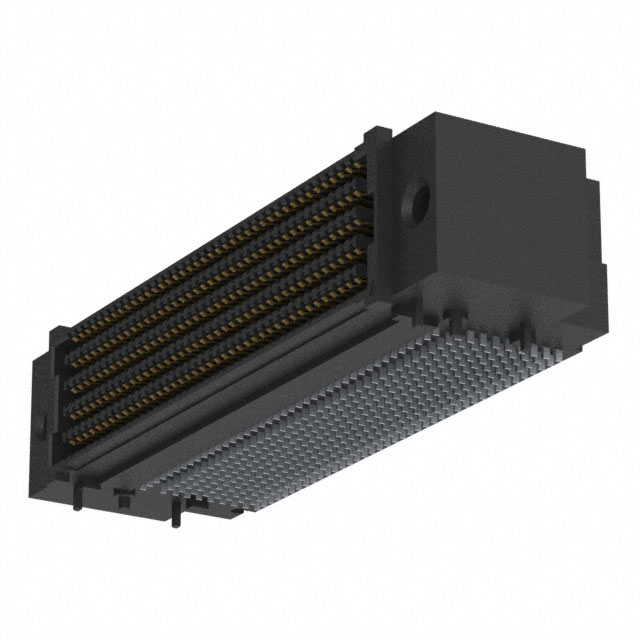

SEAF-40-01-L-10-1-RA-GP-TR is a 400-position high-density array connector introduced by Samtec, part of the SEARAY™ series. It features a right-angle open-pin field array design with a pitch of 0.050’ (1.27mm) and gold-plated surface-mount interfaces, making it ideal for high-speed signal transmission. It is widely applicable in high-speed communication, data processing, military, and aerospace applications.

SEAF-40-01-L-10-1-RA-GP-TR Product Features

High-density design: With a pitch of 0.050’ (1.27mm), it can provide up to 500 pins, maximising design and routing flexibility to accommodate various single-ended or differential pair configurations, as well as power, signal, or ground requirements.

High-speed signal transmission: Specifically designed for high-speed applications, it supports high-speed signal transmission, ensuring signal integrity and reliability.

Multiple configuration options: Offers various configuration options, including different pin counts and stacking heights, to meet the needs of different applications.

Low insertion and extraction force: Features low insertion and extraction force, facilitating connection and disconnection while ensuring connection stability.

High reliability: Manufactured using high-quality materials, it offers excellent electrical performance and mechanical stability, enabling reliable long-term operation in harsh environments.

SEAF-40-01-L-10-1-RA-GP-TR Product Attributes

Product Type: Board-to-Board and Interlayer Connectors

Product: Headers

Number of Positions: 400 Positions

Pitch: 1.27 mm (0.05 in)

Rows: 10 Row

Termination Type: Solder

Mounting Angle: Right Angle

Stack Height: 7 mm

Current Rating: 2.7 A

Voltage Rating: 240 VAC

Minimum Operating Temperature: -55°C

Maximum Operating Temperature: +125°C

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Series: SEAF-RA

Package: Reel

Application: Power, Signal

Flammability Rating: UL 94 V-0

Mounting Style: SMD/SMT

Trademark Name: SEARAY
