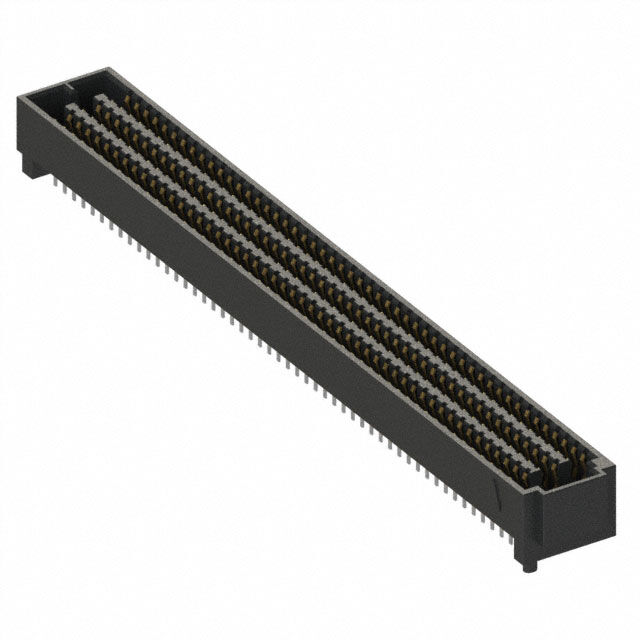

The SEAF-50-06.5-L-06-2-A-K-TR is a high density board-to-board connector from Samtec, part of the SEARAY™ SEAF series.

Product Attributes: SEAF-50-06.5-L-06-2-A-K-TR

Series: SEARAY™ SEAF

Connector Type: High Density Array, Female

Number of Positions: 300

Pitch: 0.050” (1.27mm)

Number of Rows: 6

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stack Height: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm

Height on Board: 0.258” (6.55mm)

Product Features: SEAF-50-06.5-L-06-2-A-K-TR

High-speed signaling: Supports 56G PAM4 with superior signal integrity for a variety of high-speed application scenarios, such as data centers, artificial intelligence and automated test equipment.

High Density Connectivity : Enables more connections in limited space, meeting the demand for miniaturization and high performance in modern electronic devices.

Flexible Design and Routing Options: Provides great design flexibility in both single-ended and differential pair configurations, whether it's power, signal or ground.

Durability: Durable Edge Rate® terminals ensure reliable connections.

Reduced insertion/withdrawal forces: Easy to connect and disconnect while reducing mechanical stress on the board and connector itself.

Surface-soldered pins: Improved robustness and stability of the connection.

Conformity: Meets IPC-A-610F and IPC J-STD-001F standards for high performance/harsh environment electronics to meet Class 3 acceptance criteria.

Product Advantage: SEAF-50-06.5-L-06-2-A-K-TR

Excellent performance: Outstanding performance in high-speed signal transmission to meet the demand for high-speed connectivity in data centers, artificial intelligence, and other fields.

High flexibility: Suitable for a wide range of configurations and application scenarios, providing designers with more choices.

Reliable quality: Compliance with strict industry standards ensures product reliability and durability.

Good compatibility: Good compatibility with other Samtec products and common high-speed connectivity solutions on the market.
