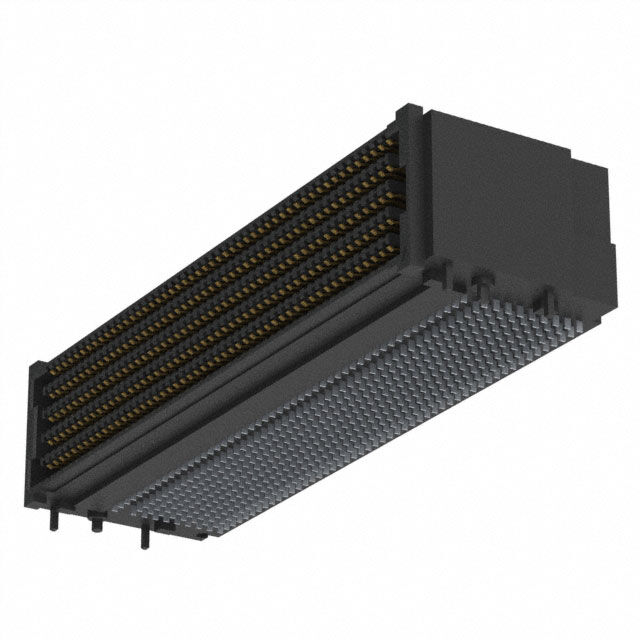

The SEAF-50-01-L-10-2-RA-K-TR is a high density board-to-board connector, part of the SEARAY™ SEAF series, designed for high speed signal transmission and compact PCB interconnections.

SEAF-50-01-L-10-2-RA-K-TR Product Features

Connector Type: High Density Array, Female chassis connector (receptacle).

Number of Positions: 500 contacts (10 rows × 50 pins) for high-bandwidth data transmission.

Pitch: 1.27 mm (0.050 inch) to support compact PCB layouts.

Mounting: Surface Mount (SMD), Right Angle for easy PCB stacking design.

Contact Finish: Gold plated (10.0 µin / 0.25 µm thickness) for improved signal integrity and corrosion resistance.

Signal Performance: Supports high speed data transfer for 56Gbps NRZ applications.

On-board height: 0.611 inches (15.53 mm).

Current rating: 2.7 A (per contact).

Voltage rating: 240 VAC for industrial grade applications.

Operating temperature: -55°C to +125°C for harsh environments.

Features: Supports board guide and Pick and Place for automated production.

SEAF-50-01-L-10-2-RA-K-TR Application Areas

Data centre: High-speed interconnection of servers, switches, and storage devices.

Industrial automation: PLC, robot control, high-density PCB connection.

Communication equipment: 5G base stations, optical modules, routers.

Medical electronics: high-precision medical imaging equipment, portable monitors.
