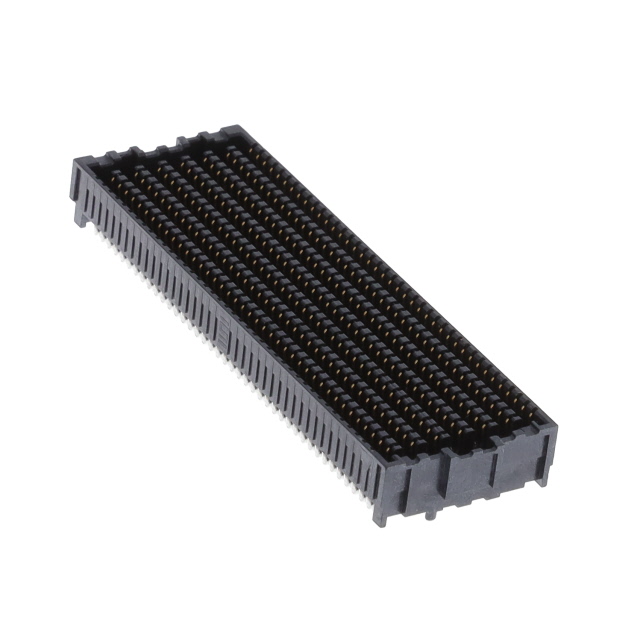

The SEAF-40-06.5-S-14-2-A-K-TR is a high-speed, high-density, open terminal array connector that is part of Samtec's SEARAY™ series, known for its high density, high speed transmission, and high flexibility. With 560 pins and a pin pitch of 0.050 inches (1.27 mm), this fine pin spacing allows the connector to make more electrical connections in a limited space. Surface mount technology (SMD) and horizontal mounting are suitable for automated production processes to increase productivity. The contacts are plated with gold, which has good conductivity and corrosion resistance, and can ensure the reliability and stability of the connector in the long-term use process.

SEAF-40-06.5-S-14-2-A-K-TR Product Features

High Density Configuration: Up to 500 terminals are available, providing great flexibility in design and wiring to meet single-ended or differential pair configurations and a variety of connection requirements such as power, signal or ground.

Low Power and High Speed Transmission : The SEARAY™ series connectors are designed to optimise signal transmission performance to support high speed signal transmission while maintaining low power consumption for high speed applications that are sensitive to signal integrity and power consumption.

Multiple Configuration Options : In addition to the 560-pin configuration, the series is available in a variety of pin counts and configurations, such as 40, 50, 80, 100, and different row and column arrangements, allowing customers to choose according to their specific needs.

Excellent Design Flexibility: Like other Samtec high-density array connectors, the SEAF-40-06.5-S-14-2-A-K-TR offers flexible design options to meet the needs of different applications, such as different stacking heights, mating styles, and more.

Multi-Standard Compliance: Meets the high reliability requirements of IPC-A-610F for Type 3 electronic assembly acceptance and IPC J-STD-001F for electrical and electronic soldered assemblies for high-performance/harsh-environment electronics production.

High-performance terminals: Rugged Edge Rate® terminals provide excellent electrical performance and mechanical stability to ensure signal integrity and reliability during high-speed signal transmission.

High Bandwidth Performance: Supporting 56Gbps PAM4 performance, these terminals are capable of meeting the demands of high-speed data transmission and are suitable for a variety of high-speed communication and data processing applications.

Extended Life: Extended Life Product™ is a certified SureCoat™ palladium-nickel and gold flash plating that withstands 5,000 cycles and 150°C operating temperatures, extending the life of the connector.

Multiple Stacking Heights: Stacking heights from 7mm to 18.5mm are available to accommodate different designs and installation space requirements.

Low insertion/withdrawal force: Designed to reduce the force required to insert and withdraw the connector, making it easier to connect and disconnect, while also reducing the mechanical stress on the connector and PCB.

Surface Soldered Pins : The use of surface soldered pins improves the reliability and stability of the connection and facilitates automated production and quality inspection.

SEAF-40-06.5-S-14-2-A-K-TR Technical Parameters

Product Category: Board-to-Board and Mezzanine Connectors

Product: Headers

Number of Positions: 560 Position

Pitch: 1.27 mm (0.05 in)

Number of Rows: 14 Row

Termination Type: Solder

Mounting Angle: Straight

Stacking Height: 7 mm

Current Rating: 2.7 A

Voltage Rating: 240 VAC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 125 C
