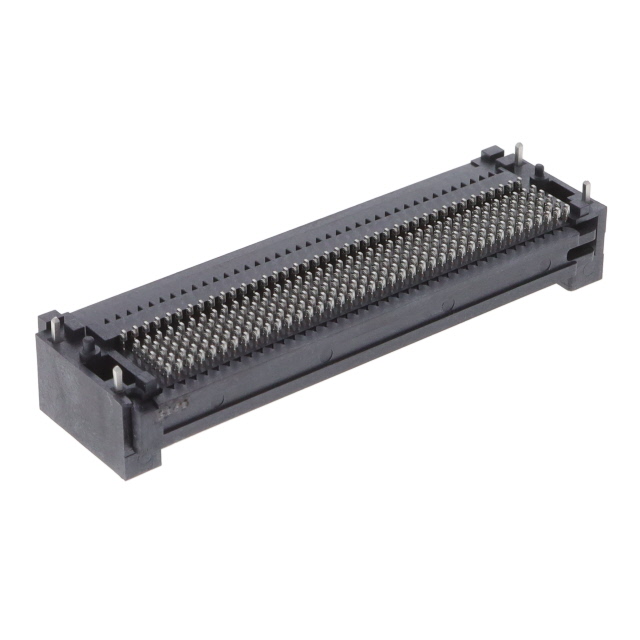

SEAF-40-01-S-06-2-RA-K-TR is a high density board-to-board connector from Samtec, part of the SEARAY™ SEAF-RA series, designed for high speed data transfer and high density interconnect applications. Its gold-plated contacts, right-angle SMD mounting, and wide temperature support allow for consistent performance in harsh environments.

Core Features (SEAF-40-01-S-06-2-RA-K-TR)

Connector Type: High Density Array, Female (Receptacle)

Number of pins: 240 contacts arranged in 6 rows of 40 pins each.

Pitch: 1.27 mm (0.050 in.) for compact PCB layouts.

Mounting: Surface Mount (SMD), Right Angle for easy PCB stacking design.

Contact Finish: Gold plated (30.0 µin / 0.76 µm thickness) for improved signal integrity and corrosion resistance.

Signal performance: Supports high-speed data transfer (up to 56 Gbps NRZ) for high-speed computing and communication devices.

Mechanical and Electrical Specifications (SEAF-40-01-S-06-2-RA-K-TR)

Stack height: 7 mm to 40 mm (adjustable for different PCB pitch requirements).

Current rating: 2.7 A (per contact).

Voltage rating: 240 VAC (for industrial grade applications).

Operating temperature: -55°C to +125°C for harsh environments.

Height on board: 10.45 mm (0.411 in.).

Application Scenarios (SEAF-40-01-S-06-2-RA-K-TR)

Data centre: High-speed interconnection of servers, switches, and storage devices.

Industrial automation: PLC, robot control, high-density PCB connections.

Communication equipment: 5G base stations, routers, optical modules.

Medical electronics: high-precision medical imaging devices, portable monitors.
