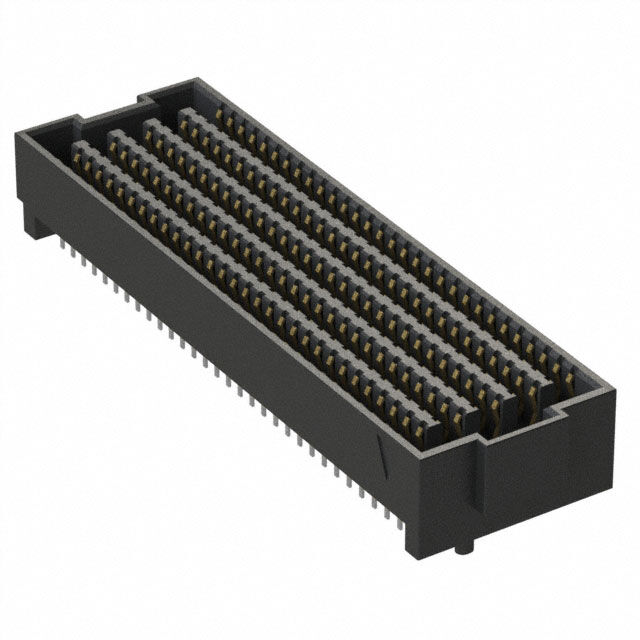

The SEAF-30-06.0-S-10-2-A-K-TR is Samtec's SEARAY™ series of high-density array connectors, female, surface mount, with 300 positions, 0.050” (1.27mm) pitch, gold-plated contacts, and single-ended or differential pair configurations with power, signal, and ground functions. With an operating temperature range of -55°C to +125°C, the connector meets the needs of a wide range of applications in harsh environments.

The connectors feature an open pin field array design for design and wiring flexibility, stack heights from 7mm to 18.5mm, reduced insertion/withdrawal forces, and compliance with IPC-A-610F and IPC J-STD-001F standards.

SEAF-30-06.0-S-10-2-A-K-TR Product Attributes:

Connector Type: High Density Array, Female

Number of Positions: 300

Pitch: 0.050” (1.27mm)

Number of rows: 10

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 30.0µin (0.76µm)

Mating Stack Height: 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm

Height on Board: 0.238” (6.05mm)

SEAF-30-06.0-S-10-2-A-K-TR Suitable for a wide range of high-speed, high-density electronic equipment, such as data centers and servers, communications equipment, consumer electronics, industrial automation, etc.
