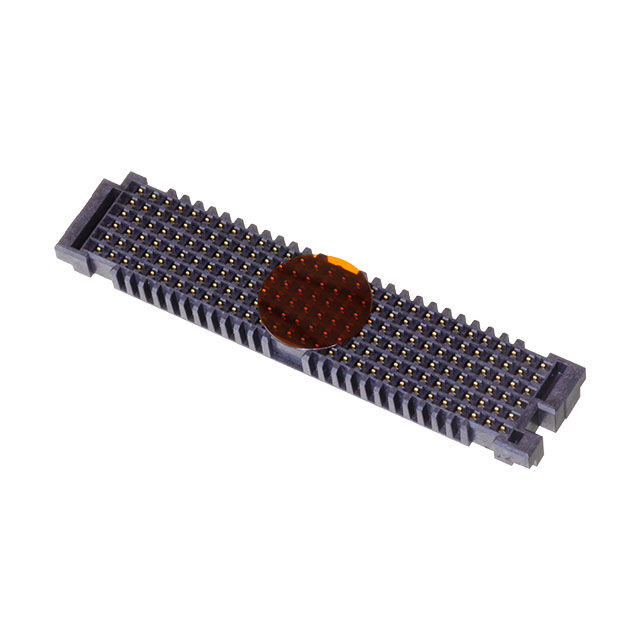

The LPAM-30-01.0-L-06-2-K-TR is Samtec's LP Array™ high-speed, high-density, low-profile, open terminal array with 180 pins, male pin array, surface mount technology, gold plating, and support for multiple stacking height options. Ideal for high density connectivity needs in high speed communications and electronic devices.

Product Features (LPAM-30-01.0-L-06-2-K-TR)

High Density Design: 180 positions with 0.050’ (1.27mm) pitch.

Low Profile Design: Stacking height options of 4mm, 4.5mm, 5mm, etc.

Contact system: Double beam contact system is adopted to ensure reliable electrical connection and mechanical stability.

High voltage and current carrying capacity: Rated current up to 2.2A, rated voltage up to 250VAC/354VDC.

Excellent electrical performance: Gold-plated contacts ensure reliable and durable connections.

Compliance: Meets RpH8 specification requirements.

Supports lead-free soldering: Supports environmentally friendly manufacturing and lead-free processes.

Signal Integrity: Supports high speed signal transmission with good signal integrity.

Product Attributes (LPAM-30-01.0-L-06-2-K-TR)

Manufacturer: Samtec Inc.

Series: LP Arrary™

Connector Type: Male Pin Array

Number of Positions: 180

Pitch: 0.050’ (1.27mm)

Number of Rows: 6

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stack Height: 4mm, 4.5mm

Board Height: 0.145’ (3.68mm)
