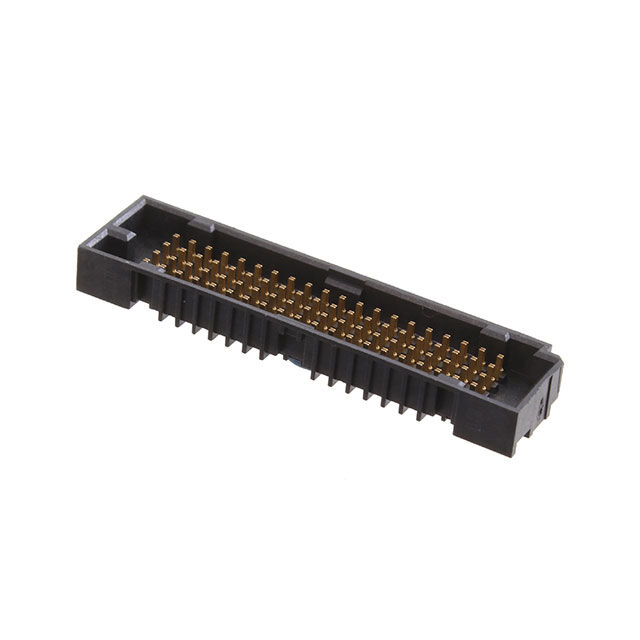

The LPAM-20-01.0-L-04-2-K-TR is a high density board-to-board connector from Samtec Inc. and is part of the LP Array™ series designed for high speed signal transmission and compact electronic devices. The connector uses surface mount (SMT) technology and is suitable for high frequency, low loss applications such as servers, communication equipment, industrial controls, and more.

LPAM-20-01.0-L-04-2-K-TR Product Parameters

Number of Pins ：80 Pos

Pitch : 0.050’ (1.27mm)

Mounting method ：Surface Mount

Number of rows : 4

Contact Plating ：Au

Package Type ：SMD, P=1.27mm

Stacking height: 4mm, 4.5mm and 5mm options available

Rated current: 2.2A max.

Rated voltage: 250VAC/354VDC max.

LPAM-20-01.0-L-04-2-K-TR Product Features

High Density Design : 80 pins with 1.27mm pitch for high speed and high density connections.

Low-profile design : Suitable for thin and light equipment to save space.

Contact system: Adoption of double-beam contact system provides reliable electrical connection and mechanical stability.

High voltage and current carrying capacity: Rated current up to 2.2A, rated voltage up to 250VAC/354VDC.

Excellent electrical performance : Gold-plated contacts ensure reliable and durable connections.

Compliance: Meets the requirements of RpH8.

Lead-free soldering support: Adapts to the requirements of environmentally friendly production and lead-free processes.

Signal Integrity : Supports high speed signal transmission with good signal integrity for high speed communication equipment.

LPAM-20-01.0-L-04-2-K-TR Typical Applications

Servers/Data Centres: High-speed backplane connections, storage devices.

Communication equipment: 5G base stations, switches, routers.

Industrial electronics: PLC, HMI modules, automation control systems.

Consumer electronics: high-end graphics cards, storage devices, embedded systems.
