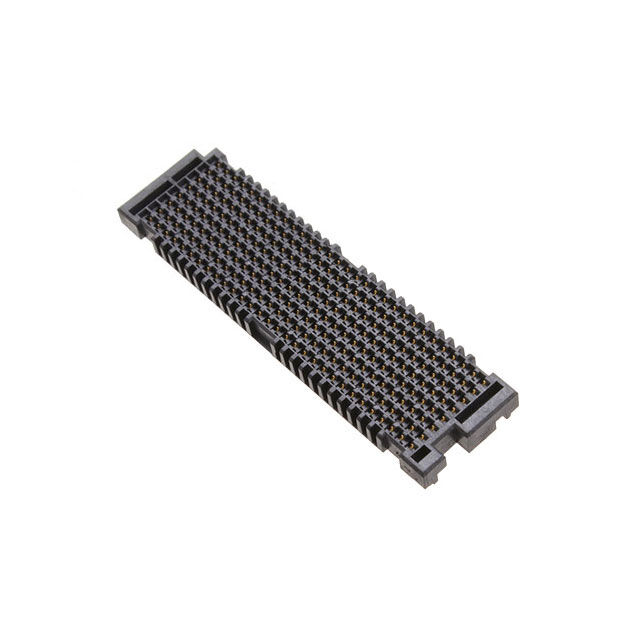

The LPAF-40-03.0-L-06-2-K-TR is Samtec's LP Array™ high-speed, high-density, low-profile, lightweight terminal open terminal array, a 240 position connector, female socket array, surface mount, gold plated, and is suitable for use in a wide range of high-speed communications and electronic equipment.

LPAF-40-03.0-L-06-2-K-TR Product Parameters

Number of pins ：240P

Pitch : 0.050’ (1.27mm)

Mounting method ：Surface Mount

Number of rows ：6

Contact plating ：Au

Package type ：SMD, P=1.27mm

Stacking height: 4mm, 4.5mm, etc. options available

Rated current ： Maximum 2.2A

Rated voltage: 250VAC/354VDC max.

LPAF-40-03.0-L-06-2-K-TR Product Features

High-density design: 240 pins with 1.27mm pitch for high-speed, high-density connections.

Low-profile design: Suitable for thin and light equipment, saving space.

Contact system: Adoption of double-beam contact system provides reliable electrical connection and mechanical stability.

High voltage and current carrying capacity: Rated current up to 2.2A, rated voltage up to 250VAC/354VDC.

Excellent electrical performance : Gold-plated contacts ensure reliable and durable connections.

Compliance: Meets the requirements of RpH8.

Lead-free soldering support: Adapts to the requirements of environmentally friendly production and lead-free processes.

Signal Integrity : Supports high speed signal transmission with good signal integrity, suitable for high speed communication equipment.

LPAF-40-03.0-L-06-2-K-TR Application Scenario

High-speed communication equipment: such as servers, routers, and switches, enabling high-speed signal transmission and high-density connections.

Industrial automation equipment: Used in industrial control and automation systems to connect various control boards and modules to ensure stable signal transmission.

Consumer electronics: High-end smartphones, tablets, and laptops that require thin, lightweight, and high-performance connectivity.
