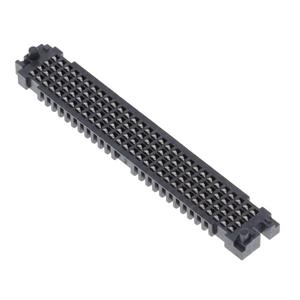

The LPAF-30-03.0-L-04-2-K-TR is a high density board-to-board connector, part of the SEARAY™ LPAF series, for high-speed signal transmission and compact electronic designs.

LPAF-30-03.0-L-04-2-K-TR Features

High density layout

120 female socket contacts in 4-row layout with 0.050’ (1.27mm) pitch

Surface mount (SMT) for automated PCB assembly.

High-speed signal support

Optimised for high-speed data transfer such as PCIe, USB 3.0, etc.

Gold-plated contacts (10μin / 0.25μm thickness) ensure low contact resistance and high reliability.

Mechanical structure optimisation

Board guide design for easy and precise alignment mounting1.

Joint stacking height: 4mm / 4.5mm (adjustable)

On-board height: 0.110’ (2.79mm) for thin and light devices.

RoHS compliant, lead-free and environmentally friendly.

LPAF-30-03.0-L-04-2-K-TR Product Attributes

Connector Type: Female Socket Array

Number of Positions: 120

Pitch: 0.050’ (1.27mm)

Number of rows: 4

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stack Height: 4mm, 4.5mm

Board Height: 0.110’ (2.79mm)

LPAF-30-03.0-L-04-2-K-TR Typical Applications

Servers/Data Centres: High speed backplane connections.

Communication equipment: 5G base stations, switches.

Industrial electronics: PLC, HMI modules.

Consumer electronics: high-end graphics cards, storage devices.
