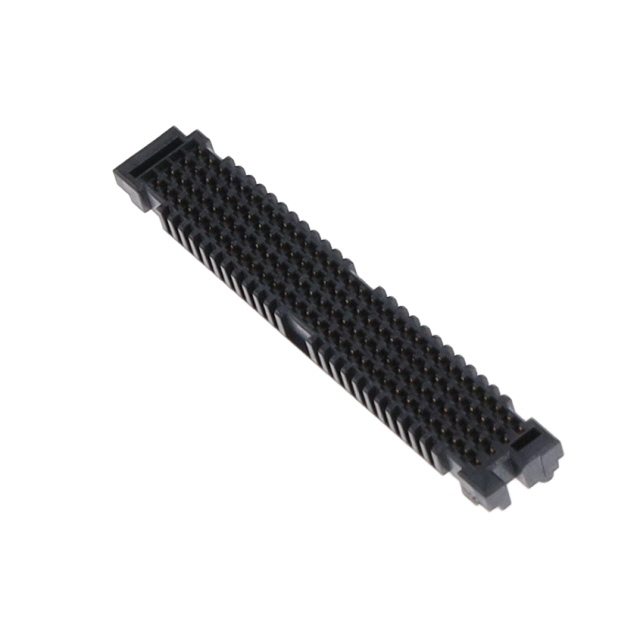

LPAF-30-03.0-L-04-1-K-TR is Samtec's LP Array™ high-speed, high-density, low-profile, open terminal array of 120 position connectors, female socket arrays, surface mount type, gold plated.

LPAF-30-03.0-L-04-1-K-TR Product Features

Electrical Performance : Excellent electrical performance with 1.27μm contact storage thickness and gold plated surface to ensure reliability and durability of the connection.

Package: Surface mount, suitable for automated production and increased productivity.

High Density Design: 120 positions with 0.050’ (1.27mm) pitch to meet high speed and high density connection requirements.

Low-profile design: Only 4mm or 4.5mm off-board height, suitable for thin and light devices.

LPAF-30-03.0-L-04-1-K-TR Product Attributes

Product Category: Board-to-Board and Mezzanine Connectors

Product: Headers

Pitch: 1.27 mm (0.05 in)

End Connection Type: Solder

Mounting Angle: Straight

Current Rating: 2.2 A

Voltage Rating: 250 V

Minimum Operating Temperature: - 55 C

Maximum operating temperature: + 125 C

Contact Plating: Gold

Contact Material: Copper Alloy

Housing material: Liquid Crystal Polymer (LCP)

Series: LPAF

Flammability rating: UL 94 V-0

LPAF-30-03.0-L-04-1-K-TR Application Scenarios

High-speed communication equipment: such as servers, routers, and switches, enabling high-speed signal transmission and high-density connectivity.

Industrial automation equipment: Used in industrial control and automation systems to connect various control boards and modules to ensure stable signal transmission.

Consumer electronics: High-end smartphones, tablets, and laptops that require thin, lightweight, and high-performance connectivity.
