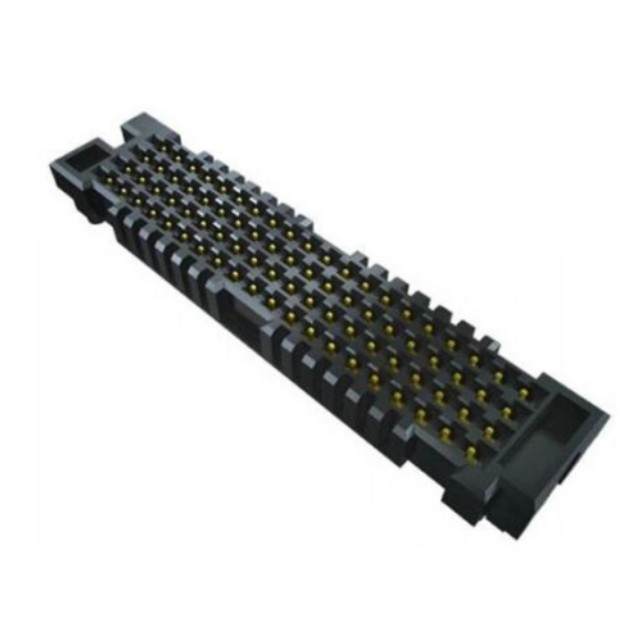

The LPAF-20-03.0-L-06-2-K-TR is a high density board-to-board connector from Samtec Inc. and is part of the SEARAY™ LPAF series for high speed signal transmission and compact electronic designs.

LPAF-20-03.0-L-06-2-K-TR Product Features

Electrical Characteristics: Rated current up to 2.2A, rated voltage up to 250VAC/354VDC.

Package: Surface mount, suitable for automated production, improve production efficiency.

Contact Reliability: Gold-plated contacts with 10.0µin (0.25µm) thickness ensure reliable and durable connections.

High Density Design: 120 positions with 0.050’ (1.27mm) asphalt and 6 rows for high speed, high density connections.

Low-profile design: Off-board height of only 0.110’ (2.79mm) with 4mm and 4.5mm stacking height options for thin and light equipment.

LPAF-20-03.0-L-06-2-K-TR Product Attributes

Series: LP Arrary™

Connector Type: Female Socket Array

Number of Positions: 120

Pitch: 0.050’ (1.27mm)

Number of rows: 6

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stacking Height: 4mm, 4.5mm

Board Height: 0.110’ (2.79mm)

LPAF-20-03.0-L-06-2-K-TR Typical Applications

Servers/Data Centres: High speed backplane connections

Communication equipment: 5G base stations, switches

Industrial electronics: PLC, HMI modules

Consumer electronics: high-end graphics cards, storage devices
