Service Telephone:86-755-83294757
Trade Name:Board To Board Connectors
Brand:Samtec
Particular Year:25+
Package:10POS
Delivery Date:New and Original
Stock: 3000pcs

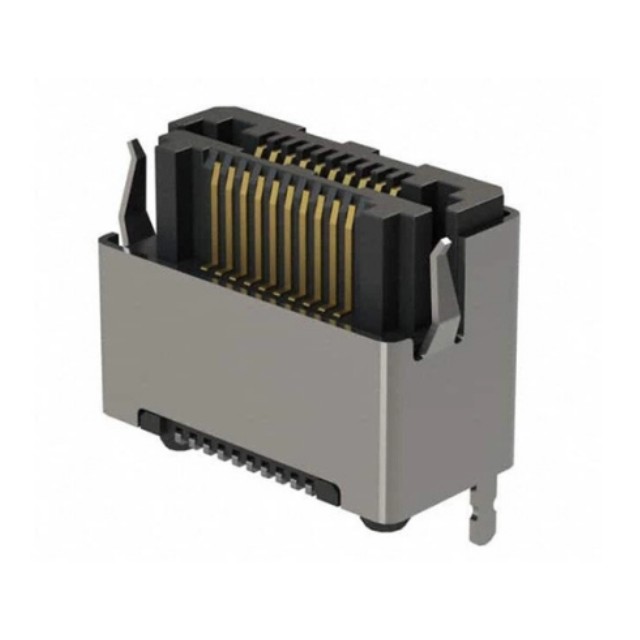

LSHM-105-06.0-L-DV-A-S-K-TR: 0.50mm, Razor Beam™ High Speed Non-Polarity Pin/Socket Tape, Shielded Option Available
Model: LSHM-105-06.0-L-DV-A-S-K-TR
Package: 10POS
Type: Board-to-Board Connector
Overview:
The LSHM is a high density ruggedised connector for board-to-board and board-to-cable applications, offering shielding options for EMI protection. Using the Razor Beam™ micropitch termination system, the non-polarised design saves PCB space in the X, Y and Z axes and is rated at 14 Gbps per terminal.
LSHM-105-06.0-L-DV-A-S-K-TR Specifications:
Number of Pins: 10
Pitch: 0.020’ (0.50mm)
Number of rows: 2
Current rating: 2 A
Voltage Rating: 160 VAC
Maximum Data Rate: 16 Gbps
Mounting Type: Surface Mount
Features: Board Guide, Pick and Place, Shielded
Contact Finish: Gold Plated
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Stack Height: 8.5mm, 9mm, 10mm, 12mm
On-Board Height: 0.293’ (7.45mm)
Operating Temperature: - 55°C ~ 125°C
LSHM-105-06.0-L-DV-A-S-K-TR Product Features:
Shielding option for EMI protection
Lubrication options available
Up to 100 I/O ports
Ten stacking height options from 5 mm to 12 mm
Automatic docking system reduces inventory costs
Parallel, vertical and coplanar systems
Rated current: 2.0 A maximum
Rated voltage: 160 VAC/226 VDC maximum
Docking and un-docking forces are approximately 4-6 times greater than typical micropitch connectors
Clicks when docked
