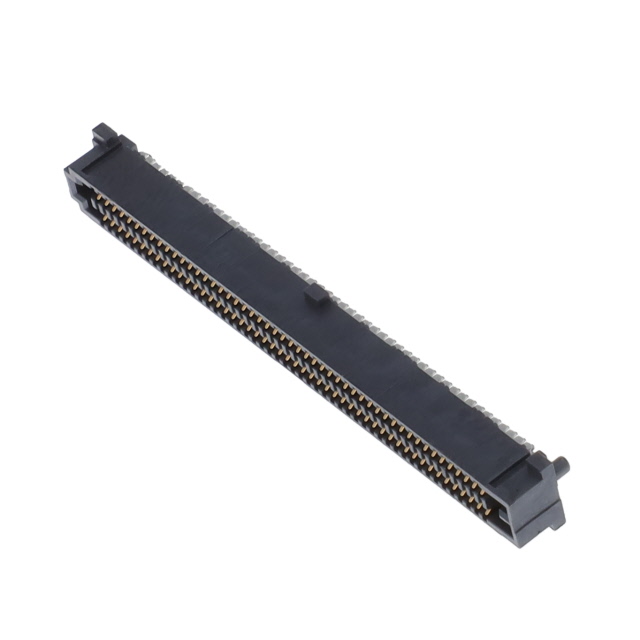

SEAF8-50-05.0-S-04-3: 0.80mm, SEARAY™ High-Speed High-Density Terminal Open Terminal Array Receptacle

Model: SEAF8-50-05.0-S-04-3

Package: 200POS

Type: Board-to-Board Connector

Overview: The SEARAY™ SEAF Series of ultra-high density, high-speed open terminal arrays features a 0.80 mm pitch grid that saves up to 50% of board space compared to .050’ pitch SEARAY™ interconnects. The system has up to 500 Edge rate® terminals optimised for signal integrity and maximum grounding and routing flexibility.

SEAF8-50-05.0-S-04-3 Specifications:

Series: SEARAY™ SEAF

Connector Type: High Density Array, Female

Number of Positions: 200

Pitch: 0.031’ (0.80mm)

Number of rows: 4

Mounting Type: Surface Mount

Features: Board Guide

Contact Finish: Gold Plated

Contact Finish Thickness: 30.0µin (0.76µm)

Contact Stacking Height: 7mm, 10mm

Board Height: 0.180’ (4.57mm)

SEAF8-50-05.0-S-04-3 Product Features:

0.80 mm (.0315") pitch

50% board space savings compared to SEARAY™ with .050’ pitch

Ruggedised Edge Rate® Termination System

56 Gbps PAM4 Performance

Current rating: 1.3 A maximum

Voltage rating: 220 VAC/311 VDC maximum

Less insertion/extraction force

Surface-soldered pins

7 mm and 10 mm stack heights
