The STM32F429BIT7 device is based on the high-performance Arm® Cortex®-M4 32-bit RISC core and operates at a frequency of up to 180 MHz. The Cortex-M4 core features a single-precision floating-point unit (FPU) and supports all Arm® single-precision data processing instructions and data types. In addition, it also features a complete set of DSP instructions and a memory protection unit (MPU) for enhancing application security.

Performance parameters

The main parameters of the STM32F429BIT7 microcontroller are as follows:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 180MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG

Peripherals: Power failure detection/reset, DMA, I2S, LCD, POR, PWM, WDT

I/O number: 168

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 256K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 3.6V

Data converter: A/D 24x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

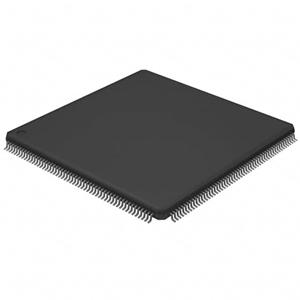

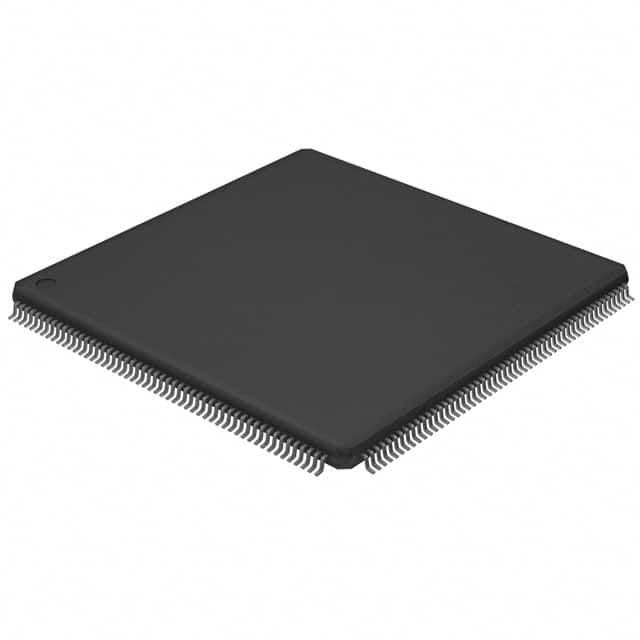

Device packaging: 208-LQFP (28x28)

Application field

Due to its high performance and rich peripheral interfaces, STM32F429BIT7 is suitable for the following fields:

Industrial Control ‌ : High-precision control algorithm implementation.

Medical equipment ‌ : Instruments and equipment that require high precision floating-point operations.

Communication equipment ‌ : High performance data processing and communication requirements.

Automotive Electronics ‌ : Advanced Driver Assistance Systems (ADAS) and body electronics Control.

Consumer electronics ‌ : high-end audio and image processing equipment.
