The STM32F072RBH6 microcontroller is a 32-bit MCU based on the ARM Cortex-M0 core launched by ST. This microcontroller features high performance, low power consumption and rich peripheral interfaces, and is suitable for a variety of application scenarios.

Main characteristics

Youdaoplaceholder0 1. High-performance ARM Cortex-M0 core ‌ : The STM32F072RBH6 has a built-in high-performance ARM Cortex-M0 32-bit RISC core operating up to 48 MHz‌.

2. Storage capacity ‌ : 128 KB of Flash memory and 16 KB of SRAM‌.

3. Rich peripheral interfaces ‌ : including two I2C interfaces, two SPI/I2S interfaces, one HDMI CEC interface, four USART interfaces, one USB full-speed device interface (without crystal oscillator), one CAN interface, one 12-bit ADC interface and one dual-channel 12-bit DAC interface ‌. In addition, there are seven 16-bit timers, one 32-bit timer and one advanced control PWM timer ‌.

Application field

The STM32F072RBH6 microcontroller is applicable to a variety of application fields, including but not limited to:

Application Control and User Interface ‌ : For a variety of control and application interfaces.

Handheld devices ‌ : such as smartphones, tablets, etc.

A/V receivers and digital TV‌ : Control of audio and video equipment.

PC peripherals ‌ : such as keyboard, mouse, etc.

Game and GPS Platform ‌ : For control of game controllers and GPS devices.

Performance parameters

Core: ARM Cortex M0

Program memory size: 128 kB

Data bus width: 32 bits

ADC resolution: 12 bits

Maximum clock frequency: 48 MHz

Number of input/output terminals: 51 I/O

Data RAM size: 16 kB

Power supply voltage - minimum: 2 V

Power supply voltage - Maximum: 3.6V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

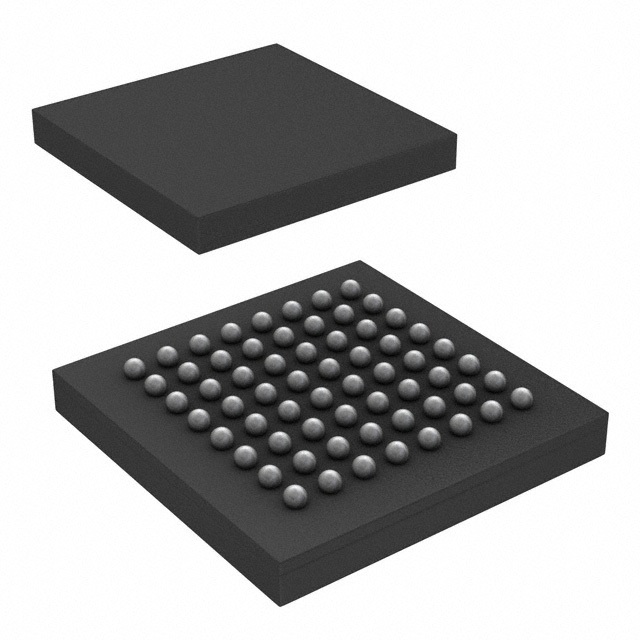

Package/Box: UFBGA-64
