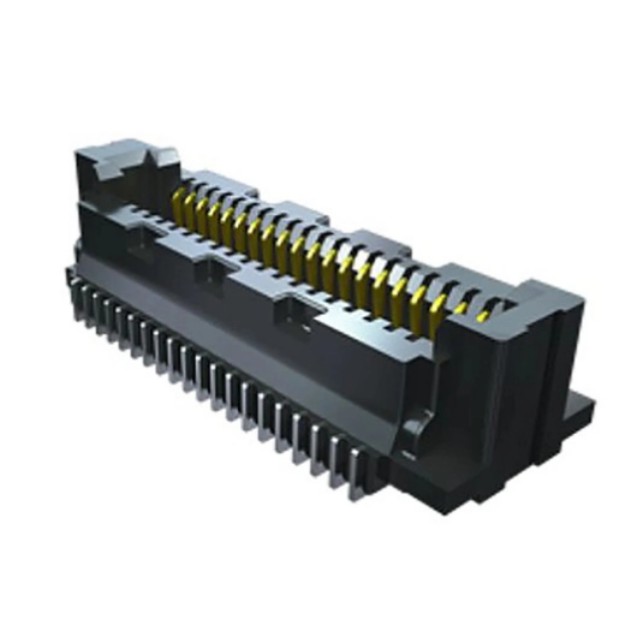

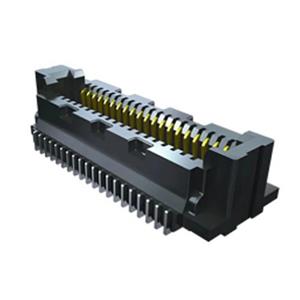

SS5-70-3.50-L-D-K-FR: 0.50mm, Micro Blade & Beam Low Profile Receptacle

Samtec High Speed Board-to-Board Connectors: 0.50mm Miniature Blade and Beam Low Profile Receptacle

Description: Manufactured on an ultra-fine 0.50mm pitch, the ST5 receptacle is designed for board-to-board connections where space is at a premium. the ST5 delivers performance up to 56 Gbps PAM4.

Model No: SS5-70-3.50-L-D-K-FR

Series: Razor Beam™ SS5

Package: 140POS

Type: High Speed Board-to-Board Connector

Connector Type: Socket, Shell Contacts

Number of Positions: 140

Pitch: 0.020’ (0.50mm)

Number of rows: 2

Mounting Type: Surface Mount

Characteristics: Pickup and Placement

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stack Height: 4.5mm, 5.5mm, 6mm

On-Board Height: 0.132’ (3.35mm)

SS5-70-3.50-L-D-K-FR Product Features:

56 Gbps PAM4 Performance

0.50 mm ultra-fine pitch

Ultra-low butt stack height down to 4 mm

Slim design further saves board space

Up to 160 I/O ports

Current rating: up to 1.5 A

Rated voltage: 200 VAC/283 VDC max.
