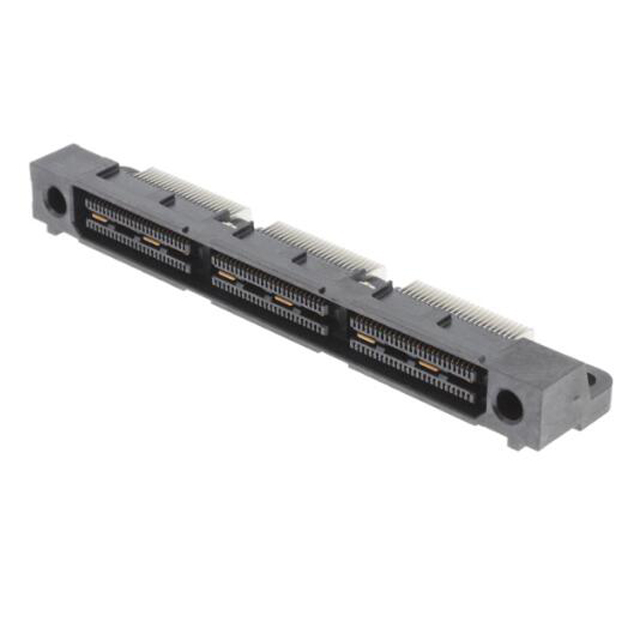

The Samtec QSS-075-02-FTL-D-RA-WT-K is a high-speed ground plane connector in the Q Strip® family designed for high-speed board-to-board applications where signal integrity is critical. Below are its core features and introduction:

QSS-075-02-FTL-D-RA-WT-K Key Specifications

Series: Q Strip® QSS

Connector Type: Socket, Centre Contact Strip

Number of Positions: 150

Pitch: 0.025’ (0.64mm)

Number of rows: 2

Mounting Type: Surface Mount, Right Angle

Features: Ground Bus (Flat), Pick and Place, Fixed Solder Tail

Contact Finish: Gold Plated

Contact Finish Thickness: 3.00µin (0.076µm)

Height on Board: 0.328’ (8.33mm)

QSS-075-02-FTL-D-RA-WT-K Core Benefits

0.635 mm (.025") pitch

Up to 150 needle positions

Guide post options

Performance: Up to 14.0 GHz / 28 Gbps

Power/grounding on belt

Connector-Connector Retention Option

Terminals: Up to 180 I/O ports

Stack height: 5 mm-25 mm

Q Strip® connectors feature surface-mounted signal terminals and provide a surface-mounted ground plane between the two rows of signal terminals for improved electrical performance.The Q Strip® connector mating sets are available in eight different stack heights ranging from 5 mm (.197‘) to 30 mm (1.180)’. Options include guide posts for blind mating application scenarios as well as locating pins and latches for proper connector placement prior to reflow processing.
