Trade Name:Board to Board Connectors
Brand:Samtec
Particular Year:25+
Package:180POS
Delivery Date:New and Original
Stock: 2000pcs

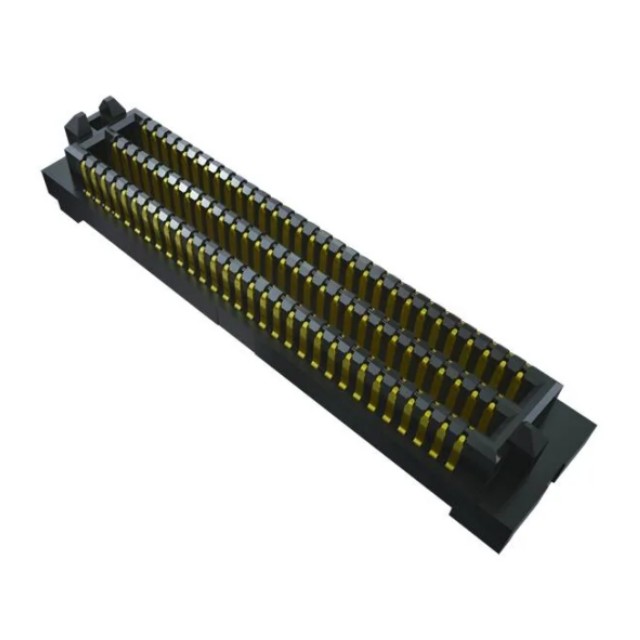

SEAM8-30-S05.0-STL-06-1-FR is 0.80 mm SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal Board to Board Connectors.
Specifications Of SEAM8-30-S05.0-STL-06-1-FR
Number of Positions:180 Position
Pitch: 0.8 mm (0.031 in)
Number of Rows: 6 Row
Termination Style: Solder
Mounting Angle: Vertical
Current Rating: 1.3 A
Voltage Rating: 220 VAC
Maximum Data Rate: 56 Gbps
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Data Rate: 56 Gbps
Feature Of SEAM8-30-S05.0-STL-06-1-FR
0.80 mm (.0315") pitch
50% board space savings versus .050" pitch SEARAY™
Rugged Edge Rate® contact system
56 Gbps PAM4 performance
Current rating: 1.3 A max
Voltage rating: 220 VAC/311 VDC max
SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing
Lower insertion/withdrawal forces
Solder charge termination
7 mm and 10 mm stack heights
Analog Over Array™ capable
Automotive A-Series product available
