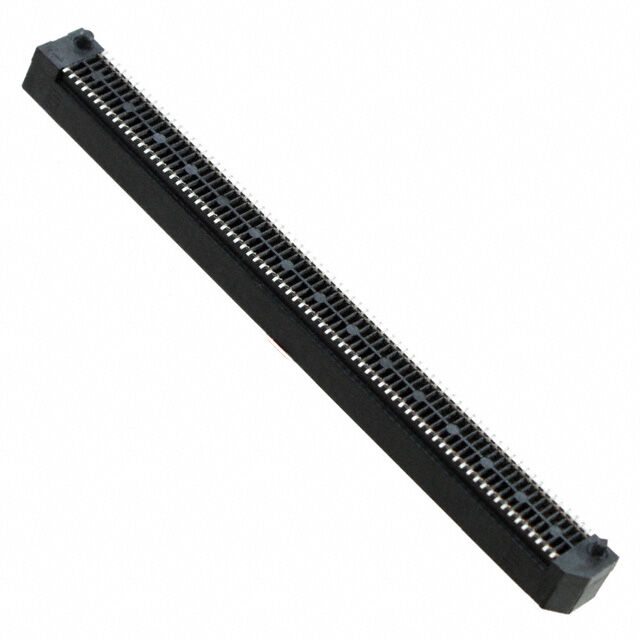

ERF8-075-05.0-S-DV-K-FR: 0.80mm, 150POS, Edge Rate® Durable High Speed Receptacle with Shroud

Samtec Board-to-Board Connectors: High Speed Dual Row Ribbon (Sandwich) - Edge Rate® Ruggedised High Speed Connector Ribbon

Samtec Edge Rate® termination systems are designed for long-life, high-speed applications.The surface of the Edge Rate® is polished to create a smooth mating surface area, rather than a stamped terminal that mates on a cut edge. This smooth docking surface reduces wear marks on the terminals, which increases the durability and life of the termination system. It also reduces insertion and extraction forces, allowing the connector to be removed and removed in a ‘zip’ fashion.

Model No.: ERF8-075-05.0-S-DV-K-FR

Series: Edge Rate™ ERF8

Package: 150POS

Type: High Speed Board-to-Board Connector

Product: Receptacle

Connector Type: Socket, Shell Contacts

Number of Positions: 150

Pitch: 0.031’ (0.80mm)

Number of rows: 2

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 30.0µin (0.76µm)

Joint Stacking Height: 7mm, 10mm, 13mm, 14mm, 20mm

On-Board Height: 0.210’ (5.33mm)

ERF8-075-05.0-S-DV-K-FR Product Features:

360º metal shield for reduced EMI

Up to 1,000 high docking cycles

Voltage rating: 225 VAC/318 VDC maximum

Extended guide posts available

56 Gbps PAM4 performance

Ruggedised Edge Rate® terminals optimised for signal integrity performance

1.5 mm terminal slide range

Stack heights: 7, 9, 12 and 16 mm

Current rating: 2.2 A maximum
