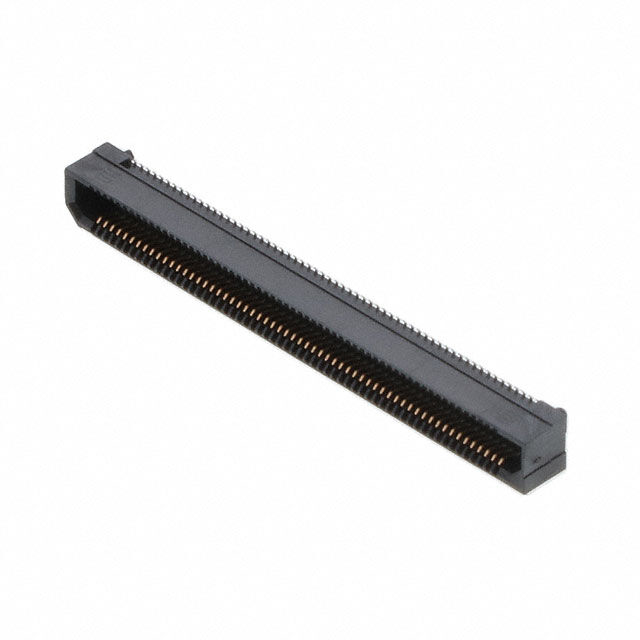

The Samtec ERF8-075-05.0-S-DV-FR is a high-performance, high-durability high-speed receptacle connector in the Edge Rate® series designed for high frequency, high reliability and harsh environments. Below are its core features and descriptions:

ERF8-075-05.0-S-DV-FR Key Parameters

Pitch: 0.8 mm (0.031 in)

Number of bits: 150 bits

Interface type: Board-to-Board (Board-to-Board) vertical mating

Current rating: 2.2A/signal contact

Voltage Rating: 225 VAC/318 VDC maximum

Signal Rate: Supports high-speed transmission up to 56Gbps PAM4 performance

Temperature range: -55°C to +125°C

ERF8-075-05.0-S-DV-FR Core Benefits

56 Gbps PAM4 performance

1.5 mm terminal slide range

Stack heights: 7, 9, 12 and 16 mm

360º metal shield for reduced EMI

High docking count of up to 1,000 times

Extended guide posts available

Ruggedised Edge Rate® terminals optimised for signal integrity performance

The ERF8 is a board-mounted receptacle designed for high-speed systems using the Edge Rate® Termination System, which is designed for applications requiring high docking cycles and 56 Gbps PAM4 performance. the ERF8 mates with the ERM8 board-mounted plug.
