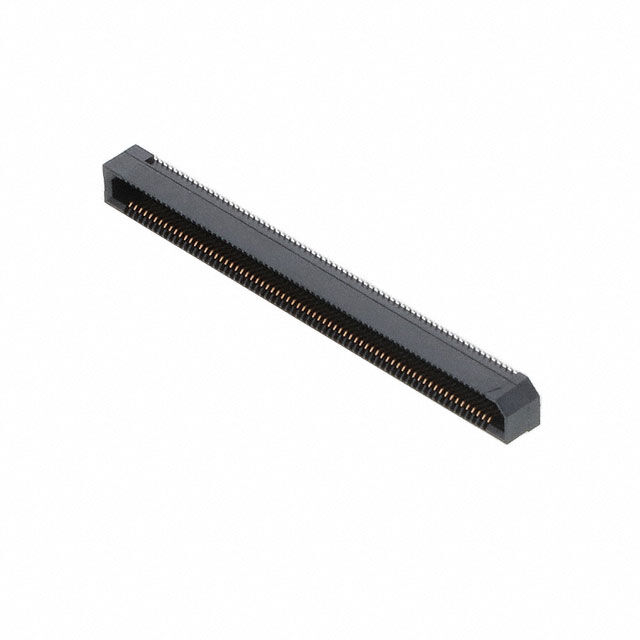

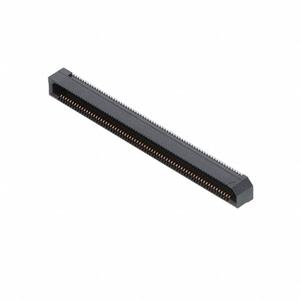

Model: ERF8-070-05.0-L-DV-K-FR (Board-to-Board Connector)

Series: Edge Rate™ ERF8

Package: 140POS

Type: Edge Rate® Ruggedised High Speed Receptacle

Overview: The ERF8 is a board-mounted receptacle designed for use in high-speed systems. the ERF8 uses the Edge Rate® termination system, which is designed for applications requiring high docking cycles and 56Gbps PAM4 performance. the ERF8 mates with the ERM8 board-mounted plug.

ERF8-070-05.0-L-DV-K-FR Specifications:

Connector Type: Socket, Shell Contacts

Number of Positions: 140

Pitch: 0.031’ (0.80mm)

Number of rows: 2

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Joint Stacking Height: 7mm, 10mm, 13mm, 14mm, 20mm

On-Board Height: 0.210’ (5.33mm)

ERF8-070-05.0-L-DV-K-FR Product Features:

56 Gbps PAM4 Performance

Durable Edge Rate® terminals

Smooth, wide polished contact surfaces for extended wear life

1.5 mm terminal slide range

Up to 1,000 high mating cycles

Number of pins: 140 POS

Stack height: 7 mm-18 mm

Available in 360º with shroud (ERF8-S)

Voltage rating: 225 VAC/318 VDC maximum

Extended guide posts available

Current rating: 2.2 A maximum
