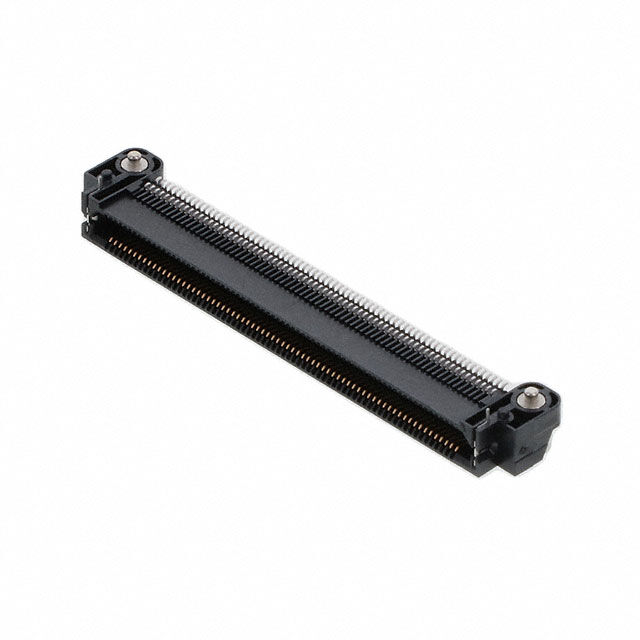

ERF8-070-01-L-D-RA-FR: 0.80mm, 140POS, Edge Rate® Durable High Speed Receptacle, Right Angle

Samtec Board-to-Board Connectors: High Speed Dual Row Ribbon (Sandwich) - Edge Rate® Ruggedised High Speed Connector Ribbon

Model No.: ERF8-070-01-L-D-RA-FR

Series: Edge Rate™ ERF8

Package: 140POS

Type: High Speed Board-to-Board Connector

Product: Receptacle

Number of Positions: 140 Position

Pitch: 0.8 mm (0.031 in)

Number of Rows: 2 Row

Termination Type: Solder

Mounting Angle: Right Angle

Maximum Data Rate: 56 Gbps

Minimum Operating Temperature: - 55°C

Maximum Operating Temperature: + 125°C

ERF8-070-01-L-D-RA-FR Product Features:

28 Gbps Performance

Durable Edge Rate® terminals

Smooth, wide polished contact surfaces for extended wear life

Number of pins: up to 150

Voltage rating: 225 VAC/318 VDC maximum

Latching and extended guide post options

High docking count of up to 500

Current rating: 2.2 A maximum
