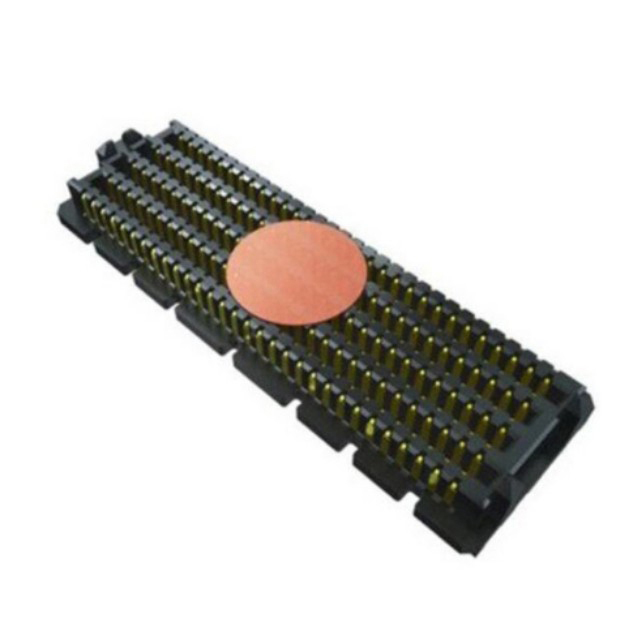

ERF8-060-05.0-L-DV-K-FR: 120POS, Board-to-Board Connector - Edge Rate® Ruggedised High Speed Receptacle

Model: ERF8-060-05.0-L-DV-K-FR

Package: 120POS

Type: High Speed Board-to-Board Connector

Product Description: 0.80mm, Edge Rate® Ruggedised High Speed Receptacle with Shroud

Samtec Edge Rate® termination systems are designed for long-life, high-speed applications.The surface of the Edge Rate® is polished to create a smooth mating surface area rather than a stamped terminal that mates on a cut edge. This smooth docking surface reduces wear marks on the terminals, which increases the durability and life of the termination system. It also reduces insertion and extraction forces, allowing the connector to be removed and removed in a ‘zip’ fashion.

ERF8-060-05.0-L-DV-K-FR Specifications:

Series: Edge Rate™ ERF8

Connector Type: Socket, Shell Contacts

Number of Positions: 120

Pitch: 0.031’ (0.80mm)

Number of rows: 2

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Joint Stacking Height: 7mm, 10mm, 13mm, 14mm, 20mm

Height on Board: 0.210’ (5.33mm)
