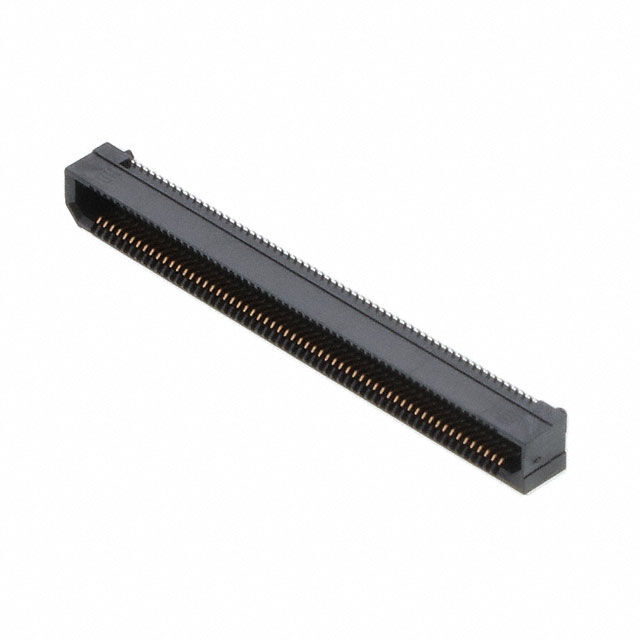

ERF8-060-05.0-L-DV-FR: 0.80mm, Edge Rate® Durable High Speed Receptacle with Shroud

Basic Information:

Model: ERF8-060-05.0-L-DV-FR

Series: Edge Rate™ ERF8

Package: 120POS

Type: High Speed Board-to-Board Connector

Pitch: 0.031’ (0.80mm)

Contact Finish Thickness: 10.0µin (0.25µm)

Board Height: 0.210’ (5.33mm)

ERF8-060-05.0-L-DV-FR Product Features:

360º metal shield for reduced EMI

Up to 1,000 high docking cycles

Voltage rating: 225 VAC/318 VDC maximum

Extended guide posts available

56 Gbps PAM4 performance

Ruggedised Edge Rate® terminals optimised for signal integrity performance

1.5 mm terminal slide range

Stack heights: 7, 9, 12 and 16 mm

Current rating: 2.2A maximum
