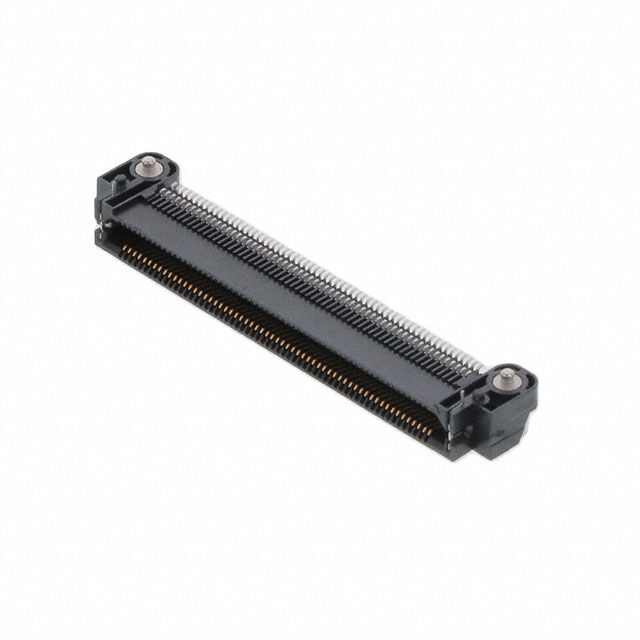

ERF8-060-01-L-D-RA-FR: 0.80mm, Edge Rate® Durable High Speed Socket, Right Angle

Overview:

The ERF8-RA is a right-angle board-mounted receptacle designed for use in high-speed systems.The ERF8-RA incorporates the Edge rate® termination system and is designed for applications requiring high docking cycles and 56 Gbps PAM4 performance.The ERF8-RA mates with the ERM8 board-mounted plug.

Basic Information:

Model: ERF8-060-01-L-D-RA-FR

Package: 120POS

Type: Board-to-Board Connector

Series: Edge Rate™ ERF8

Connector Type: Socket, Shell Contacts

Number of Positions: 120

Pitch: 0.031’ (0.80mm)

Number of Rows: 2

Mounting Type: Surface Mount, Right Angle

Features: Board Guide, Mounting Flange

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Board Height: 0.246’ (6.25mm)

ERF8-060-01-L-D-RA-FR Product Features:

28 Gbps performance

Durable Edge Rate® terminals

Smooth, wide polished contact surfaces for extended wear life

Number of pin positions: up to 150

Voltage rating: 225 VAC/318 VDC maximum

Latching and extended guide post options

High docking count of up to 500

Current rating: 2.2 A maximum
