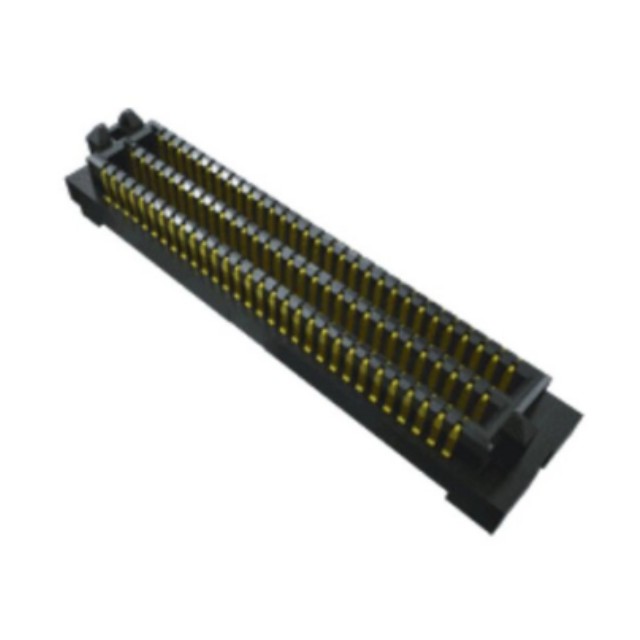

SEAM8-20-S02.0-STL-06-1: 0.80mm, SEARAY™ High-Speed, High-Density Terminal Open Terminal Array Pins

Model: SEAM8-20-S02.0-STL-06-1

Package: 120POS

Type: Board-to-Board Connector

The SEAM8-20-S02.0-STL-06-1 is a SEARAY™ ultra-high density, high-speed open terminal array with a 0.80 pitch grid that saves up to 50% of board space compared to .050’ pitch SEARAY™ interconnects. The system has up to 500 Edge rate® terminals optimised for signal integrity and maximum grounding and routing flexibility. Features include up to six rows of 50 terminals each, a choice of 7 mm or 10 mm stacking heights, and 56 Gbps PAM4 high-speed performance.

SEAM8-20-S02.0-STL-06-1 Product Features:

0.80 mm (.0315") pitch

50% board space savings compared to .050’ pitch SEARAY™.

Ruggedised Edge Rate® Termination System

56 Gbps PAM4 Performance

Current rating: 1.3 A maximum

Voltage rating: 220 VAC/311 VDC maximum

Less insertion/extraction force

Surface-soldered pins

7 mm and 10 mm stack heights
