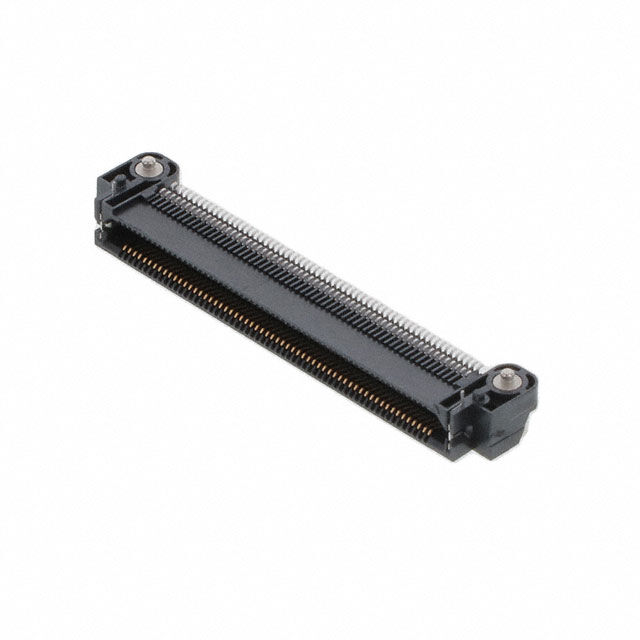

SEAM-30-01-S-04-2-RA-GP-FR: 120POS, 0.050’ SEARAY™ High-Speed Right-Angle Open Terminal Array Pins

DESCRIPTION: SEARAY™ - 56 Gbps PAM4 High Density Open Terminal Arrays offer maximum flexibility and up to 560 I/Os in stack heights from 7 mm to 40 mm, allowing differential pair signals, single-ended signals, and power to be transmitted simultaneously over the same interconnect.

Basic Information:

Model: SEAM-30-01-S-04-2-RA-GP-FR

Package: 120POS

Type: Board-to-Board Connector

Pitch: 1.27 mm (0.05 in)

Number of rows: 4Row

Termination Type: Solder

Mounting Angle: Vertical

Current Rating: 2.7 A

Voltage Rating: 240 VAC

Minimum Operating Temperature: - 55 °C

Maximum operating temperature: + 125 °C

SEAM-30-01-S-04-2-RA-GP-FR Product Features:

High-density pin-chip open terminal array

Right Angle Design

.050’ (1.27 mm) pitch

Durable Edge Rate® terminals

Current rating: 1.9 A maximum

Voltage rating: 240 VAC/339 VDC maximum

Surface soldered pins

Guide post, latching post options

Reduced insertion/extraction force
