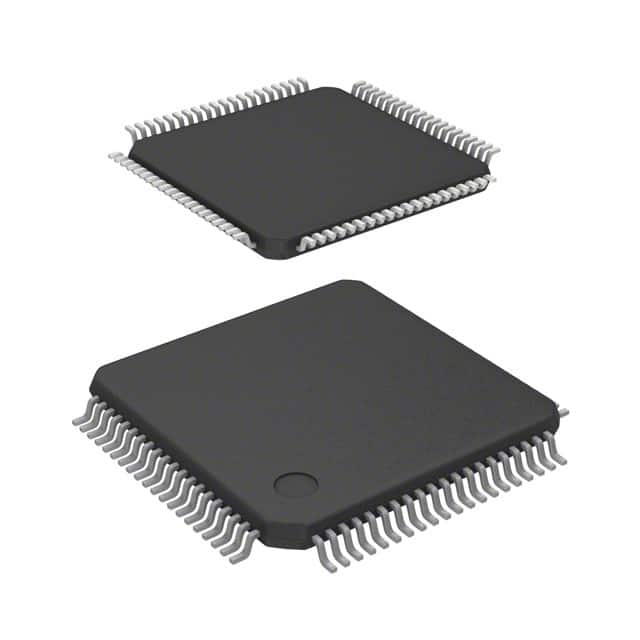

The STM32G474MET3 device is a high-performance and low-power 32-bit microcontroller launched by STMicroelectronics. Based on the Arm Cortex-M4 core, it can operate at a frequency of up to 170MHz and has floating-point operation unit (FPU) and digital signal processing (DSP) instructions. It is suitable for application scenarios that require high-precision calculation.

Basic parameters and performance characteristics

The STM32G474MET3 microcontroller has the following main features:

1. High performance processing power ‌ : Based on Arm Cortex-M4 core, with an operating frequency of 170 MHZ, supports floating-point operations and DSP instructions, suitable for applications requiring complex computations ‌.

2. Rich peripherals ‌ : This microcontroller provides up to 1M bytes of Flash memory and 128KB of SRAM, supports multiple communication interfaces such as UART, SPI, I2C, etc., and is suitable for motor control, power management, industrial sensors, consumer electronics and other fields ‌.

3. Low Power design ‌ : The STM32G474MET3 features a low power design while ensuring high performance, making it suitable for embedded systems that need to run for long periods ‌.

In addition, STM32G474MET3 also has the following parameters:

Core processor: ARM® Cortex®-M4

Kernel specification: 32- bits

Speed: 170MHz

Connection capabilities: CANbus, I2C, IrDA, LINbus, QSPI, SAI, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 66

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 128K x 8

Voltage-supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 41x12b SAR D/A 7x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 80-LQFP (12x12)
