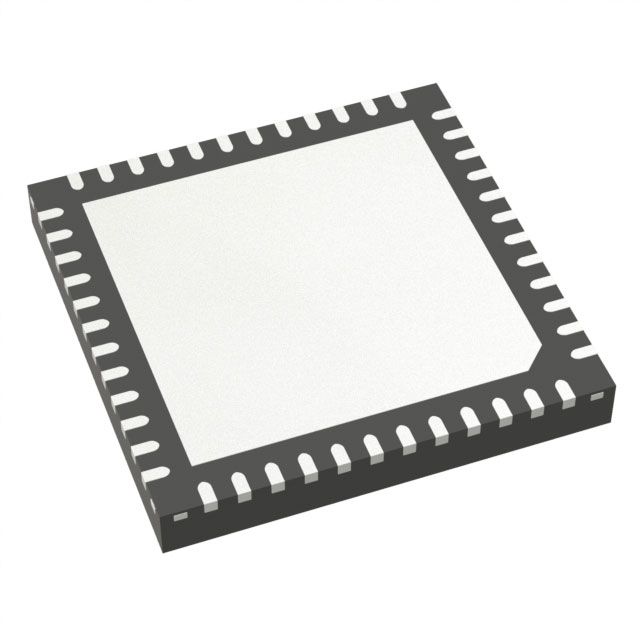

The STM32G071CBU6 is a microcontroller based on a high-performance ARM Cortex-M0+ 32-bit RISC core that operates at a frequency of up to 64MHz‌. It is highly integrated and suitable for a wide range of applications in consumer, industrial and home appliances, and meets the requirements of Internet of Things (IoT) solutions ‌.

STM32G071CBU6 has the following main features:

Core: ARM® 32-bit Cortex®-M0+ CPU, with a frequency up to 64MHz

Up to 128KB of flash memory

36KB SRAM

Voltage range: 1.7V to 3.6V

VBAT power supply, used for RTC and spare registers

4 to 48 MHZ crystal oscillator

7-channel DMA controller, flexible mapping

12-bit 0.4µs ADC (up to 16 external channels)

Two fast and low-power analog comparators with programmable rail-to-rail input and output

Two 12-bit Dacs, low-power sampling and holding

14 timers (two 128MHz) : 16-bit for advanced motor control, one 32-bit and five 16-bit general-purpose, two basic 16-bit, two low-power 16-bit, two watchdog, SysTick timer

Calendar RTC, with the function of alerting and scheduled to wake up from the shutdown/standby/off mode

USB Type-C™ power supply controller

Development expenditure: Serial Line Debugging (SWD)

96-bit unique ID

Complies with the ECOPACK®2 standard

The STM32G071CBU6 microcontroller includes a memory protection unit (MPU), high-speed embedded memory (up to 128KB flash program memory and 36kB SRAM), DMA, as well as various system functions, enhanced I/O and peripherals. The operating environment temperature range of this MCU is from -40°C to 85°C, and the operating power supply voltage range is from 1.7V to 3.6V.
