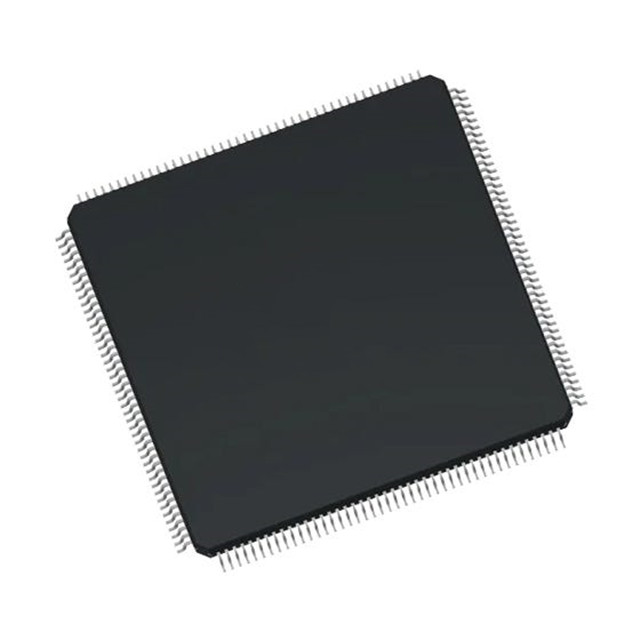

STM32F767IIT6 is a high-performance 32-bit microcontroller launched by STMicroelectronics. It is based on the ARM Cortex-M7 core and operates at a frequency as high as 216 MHz. It has powerful computing capabilities and rich peripheral interfaces. Its characteristics and technical parameters are as follows:

Characteristics

1. Youdaoplaceholder0 High-performance processor ‌ : The STM32F767IIT6 is equipped with an ARM Cortex-M7 core, supports floating-point operations, and is suitable for handling complex algorithms and large data volume applications ‌.

2. Youdaoplaceholder0 Storage capacity ‌ : Integrates up to 2MB of flash memory and 512KB of SRAM, supports external memory expansion, and meets the requirements of complex applications ‌.

3. Youdaoplaceholder0 Rich peripheral interfaces ‌ : Including multiple general-purpose timers, general-purpose serial interfaces, Ethernet controllers, USB interfaces, SPI, I2C, USART and other communication interfaces, suitable for various application scenarios ‌.

4. Youdaoplaceholder0 Advanced integration ‌ : Integrates multiple analog and digital peripherals such as ADC, DAC, and PWM controller, supporting the connection and control of various sensors and peripheral devices ‌.

Technical parameters

The main parameters of the STM32F767IIT6 microcontroller include:

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 216MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG

Peripherals: Power failure detection/reset, DMA, I2S, LCD, POR, PWM, WDT

I/O number: 140

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.7V to 3.6V

Data converter: A/D 24x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 176-LQFP (24x24)
