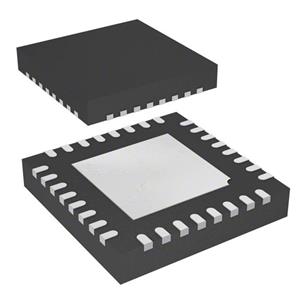

The STM32C051K6U6 is a 32-bit microcontroller based on the ARM Cortex-M0+ core with a clock speed of 48MHz, 32KB of ‌ flash memory and 12KB of RAM, and is intended for a wide range of applications in consumer, industrial and household appliances. Its technical specifications and applications are as follows:

Technical Specification

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 48MHz

Connection capabilities: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 30

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 12K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 20x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 32-UFQFPN (5x5)

Application field

The STM32C051K6U6 microcontroller is suitable for a variety of application scenarios, including but not limited to:

Automation and Process Control ‌ : For industrial automation and process monitoring.

Portable devices ‌ : such as small electronic devices, sensors, etc.

Consumer electronics ‌ : smart home devices, wearable devices, etc.

Besides, STM32C051K6U6  The MCU also features standard communication interfaces (one I2C, one SPI/ one I2S and two USArts), a 12-bit ADC with up to 21 channels (2.5MSps), a low-power RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog timers and a SysTick timer.
