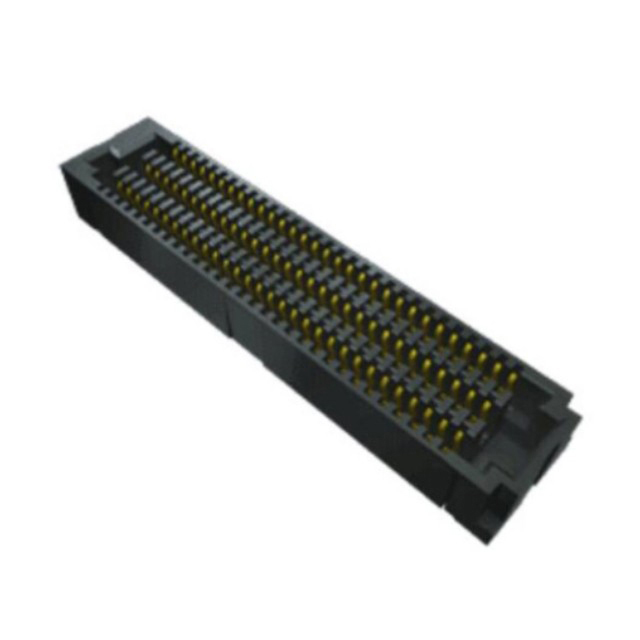

Samtec's SEAF8-30-05.0-STL-08-1-FR is a 0.80 mm, SEARAY ™ High Speed High Density Terminal Open Terminal Array Socket belonging to Samtec's SEARAY ™ Series that features open terminals to save up to 50% of board space. The following is a detailed introduction of this product:

1. Product details

Model: SEAF8-30-05.0-STL-08-1-FR

Package: 240POS

Type: High Speed Board-to-Board Connector

Product Description: 0.80 mm, SEARAY ™ High Speed High Density Terminal Open Terminal Array Socket

2. Key features:

0.80 mm (. 0315 ") pitch

Saves 50% board space compared to. 050 "pitch SEARAY ™

Durable Edge Rate ® Terminal System

56 Gbps PAM4 performance

Current rating: 1.3 A maximum

Voltage rating: 220 VAC/311 VDC max

Less insertion/extraction force

Surface welding pin

7 mm and 10 mm stack height

Analog Over Array ™ Competence

3. Specification parameters:

Number of Positions: 240 Position

Pitch: 0.8 mm (0.031 inch)

Rows: 8 Row

Termination Type: Welded

Installation angle: Right angle

Current rating: 1.3 A

Voltage rating: 220 VAC

Maximum data rate: 56 Gbps

Working temperature:-55 ℃ ~ 125 ℃
