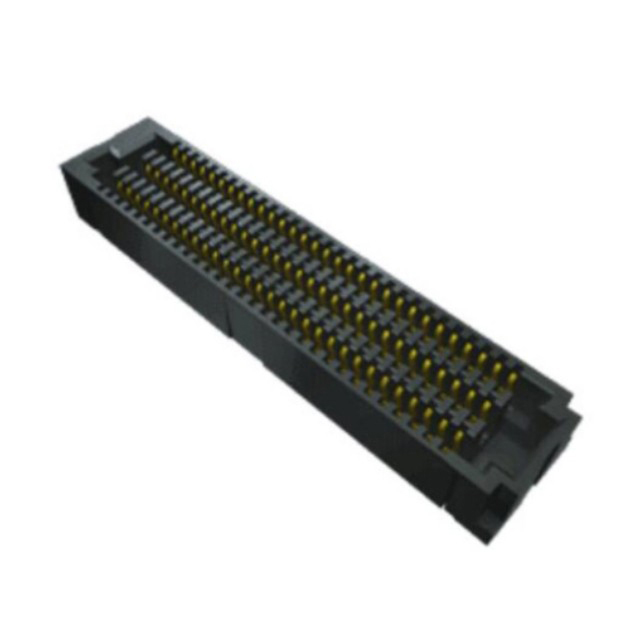

SEAF8-20-05. 0-STL-10-1-FR: 200POS, Board-to-Board Connector-0.80 mm SEARAY ™ High Speed High Density Terminal Open Terminal Array Receptacle

Basic information:

Model: SEAF8-20-05. 0-STL-10-1-FR

Package: 200POS

Type: Board-to-Board Connector-SEARAY ™ High Speed High Density Terminal Open Terminal Array Socket

SEAF8-20-05. 0-STL-10-1-FR Product Features:

0.80 mm (. 0315 ") pitch

Save 50% board space compared to. 050 "pitch SEARAY ™

Durable Edge Rate ® Terminal System

56 Gbps PAM4 performance

Current rating: 1.3 A maximum

Voltage rating: 220 VAC/311 VDC max

Less insertion/extraction force

Surface welding pin

7 mm and 10 mm stack height

Analog Over Array ™ Competence

Description: SEAF8-20-05. 0-STL-10-1-FR-Ultra-high density, high-speed open terminal array features a 0.80 mm pitch grid that saves up to 50% board space compared to. 050 "pitch SEARAY ™ interconnectors. The system has a total of up to 500 Edge rate ® terminals optimized for signal integrity for maximum grounding and wiring flexibility. Features include up to 10 rows of 50 terminals per row with a choice of 7 mm or 10 mm stack heights, and high-speed performance at 28 + Gbps.
