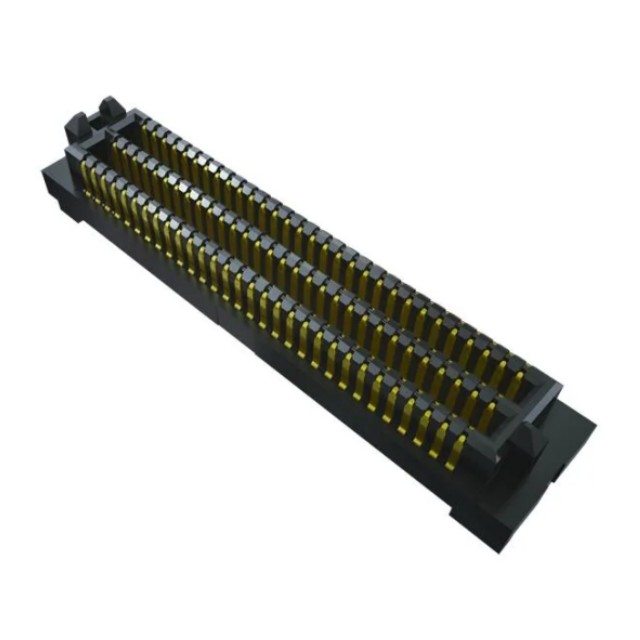

For picture reference, please see the specifications
< >

Commodity Model:SEAM8-20-S02.0-L-08-3-GP-FR

Trade Name:Board to Board Connectors

Brand:Samtec

Particular Year:25+

Package:160POS

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAM8-20-S02.0-L-08-3-GP-FR
Package
160POS
Describe
SEARAY™ High-Speed High-Density Board to Board Connectors

Product Description

SEAM8-20-S02.0-L-08-3-GP-FR is 0.80 mm SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal Board to Board Connectors.


Specifications Of SEAM8-20-S02.0-L-08-3-GP-FR

Number of Positions: 160 Position

Pitch: 0.8 mm (0.031 in)

Number of Rows: 8 Row

Termination Style: Solder

Mounting Angle: Vertical

Current Rating: 1.3 A

Voltage Rating: 220 VAC

Maximum Data Rate: 56 Gbps

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 125 C

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Data Rate: 56 Gbps

Mounting Style: Mounting Peg


Feature Of SEAM8-20-S02.0-L-08-3-GP-FR

0.80 mm (.0315") pitch

50% board space savings versus .050" pitch SEARAY™

Rugged Edge Rate® contact system

56 Gbps PAM4 performance

Current rating: 1.3 A max

Voltage rating: 220 VAC/311 VDC max

SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing

Lower insertion/withdrawal forces

Solder charge termination

7 mm and 10 mm stack heights

Analog Over Array™ capable

Automotive A-Series product available
