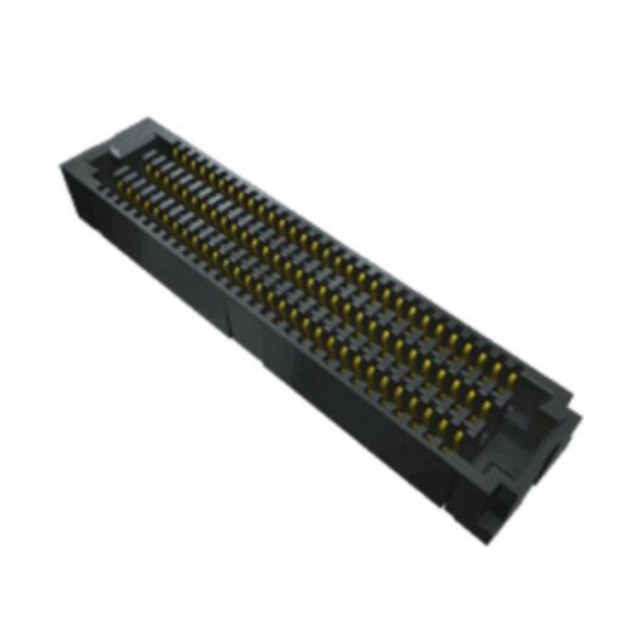

SEAF8-20-05.0-STL-06-1-FR (Board-to-Board Connector): 120POS, 0.80 mm SEARAY ™ High Speed High Density Terminal Open Terminal Array Socket

Description: The 0.80 mm pitch high-density array features open terminals, which can save up to 50% of board space.

Product details:

Model: SEAF8-20-05.0-STL-06-1-FR

Package: 120POS

Type: SEARAY ™ 0.80 mm Pitch Ultra High Density Array-Board-to-Board Connector

Pitch: 0.8 mm (0.031 inch)

Number of Rows: 6 Row

Termination Type: Welded

Installation angle: Right angle

Current rating: 1.3 A

Voltage rating: 220 VAC

Maximum data rate: 56 Gbps

Working temperature:-55 ℃ ~ 125 ℃

SEAF8-20-05.0-STL-06-1-FR Product Features:

0.80 mm (. 0315 ") pitch

Save 50% board space compared to. 050 "pitch SEARAY ™

Durable Edge Rate ® Terminal System

56 Gbps PAM4 performance

Current rating: 1.3 A maximum

Voltage rating: 220 VAC/311 VDC max

Less insertion/extraction force

Surface welding pin

7 mm and 10 mm stack height

Analog Over Array ™ Competence
