The STM32C091KCT6 is a 32-bit microcontroller (MCU) based on an ARM Cortex-M0+ core that operates at 48MHz‌ with 256KB of flash memory and 36KB of RAM‌. Its technical specifications and applications are as follows:

Technical Specification

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 48MHz

Connection capabilities: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 30

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 36K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 18x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

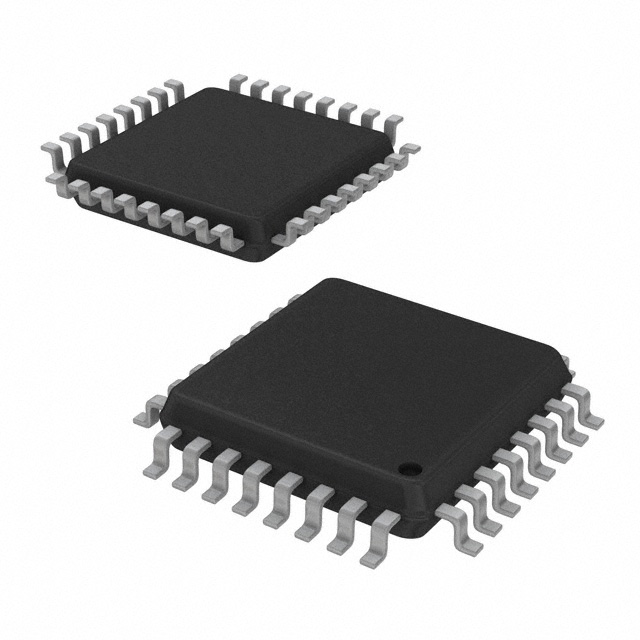

Device packaging: 32-LQFP (7x7)

Application

Smart home

Industrial equipment

Consumer electronic devices

Cost-sensitive applications

The STM32C091KCT6 MCU also offers a variety of standard communication interfaces (2 I2C, 2 SPI/1 I2S, 1 FDCAN and 4 USART), as well as a 12-bit ADC with up to 19 channels (2.5 Msps, 1 low-power RTC, 1 advanced control PWM timer, 5 general-purpose 16-bit timers, 1 32-bit general-purpose timer, 2 watchdog timers and 1 SysTick timer.
