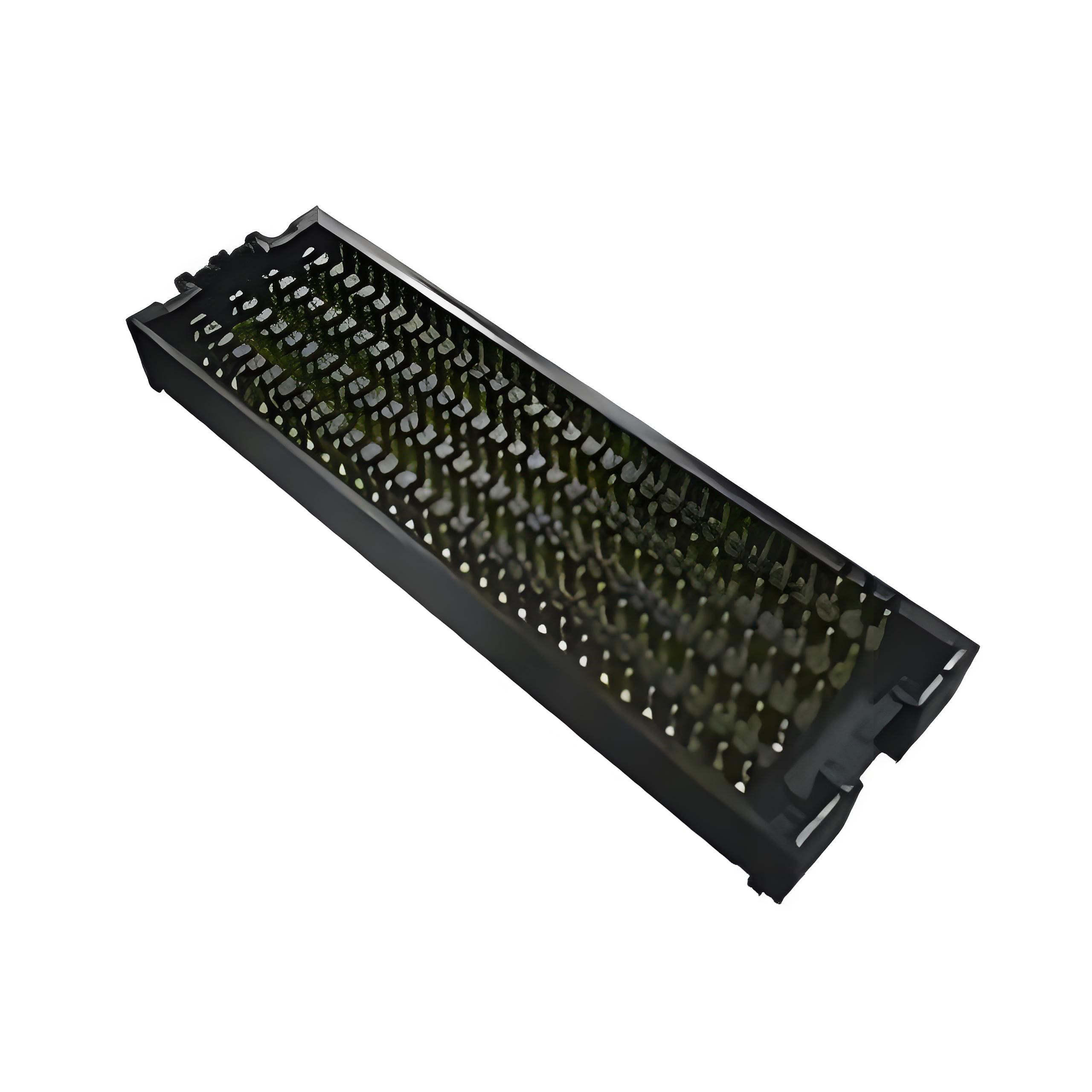

SEAF-20-07.5-S-06-2-A-K-TR:. 050 "SEARAY ™ High Speed High Density Terminal Open Terminal Array Receptacle

Here are the specifications and key information about the Samtec SEAF-20-07.5-S-06-2-A-K-TR board-to-board connector:

1. Overview:

The SEARAY ™ is an open terminal array. 050 "(1.27 mm) pitch connector. Offering up to 500 terminals, the SEARAY ™ maximizes design and cabling flexibility for single-ended or differential pair configurations, as well as power, signal or ground. The SEARAY ™ uses the Edge Rate ® terminal system, which is designed for applications requiring high docking cycles and 56 Gbps PAM4 performance. The SEAM/SEAF features SureCoat ™ palladium nickel and glitter gold plating and is certified by Extended Life Product ™ to withstand 5.000 cycles and 150 º operating temperature.

2. Basic parameters

Model: SEAF-20-07.5-S-06-2-A-K-TR

Series : SEARAY ™ SEAF

Package: 120POS

Type: Board to Board Connector

Connector type: High density array, female

Number of needles: 120

Pitch: 0.050 "(1.27 mm)

Number of rows: 6

Mounting Type: Surface Mount

Features: Plate guide, pick-and-place

Contact surface treatment: Gold plated

Contact surface finish thickness: 30.0 µ in (0.76 µ m)

Joint stack height: 9.5 mm, 10.5 mm, 11mm, 14mm, 14.5 mm, 16.5 mm, 18.5 mm, 20.5 mm

Height on board: 0.297 "(7.54 mm)
