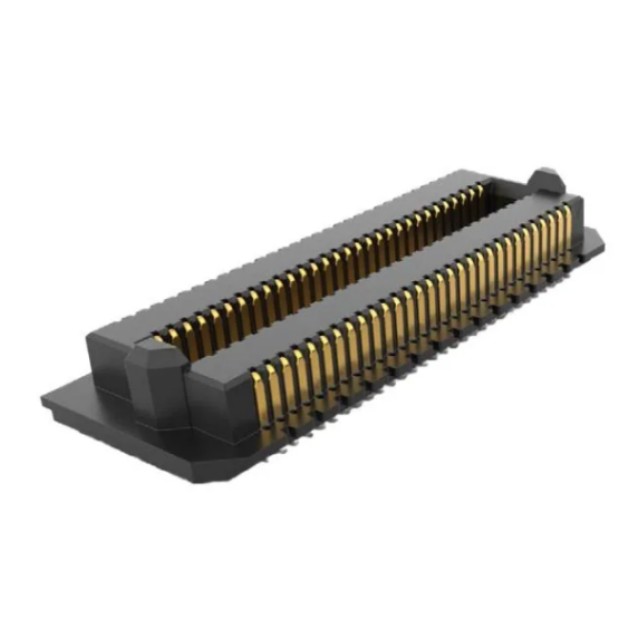

The APM6-100-01.5-S-04-2-FR is a high-performance connector for Samtec's APM6 series.

APM6-100-01.5-S-04-2-FR Features

High density design: 0.635 mm pitch, 400 positions, up to 800 total terminals per row (APM6 series), achieving high I/O density.

High-performance transmission: Supports 112Gbps PAM4 transmission rate to meet high-speed signal transmission needs.

Flexible Wiring: Open terminal design, providing grounding and wiring flexibility, simplifying board layout.

Multiple configurations: There are configurations with different stacking heights, number of rows and number of positions, and the stacking height is 5mm.

HIGH RELIABILITY: Meets industry standard reliability testing to ensure stability and durability in harsh environments.

APM6-100-01.5-S-04-2-FR Parameters

Product category: Board-to-board and mezzanine connectors

Product: Plugs

Number of Positions: 400 Position

Pitch: 0.635 mm (0.025 in)

Rows: 4 Row

Termination Type: Solder Balls

Installation angle: Straight

Stacking height: 5 mm

Current rating: 1.2 A

Voltage rating: 150 VAC, 212 VDC

Maximum data rate: 112 Gbps

Minimum operating temperature:-55 C

Maximum operating temperature: + 125 C

Contact plating: Gold

Contact Material: Copper Alloy

Enclosure Material : Liquid Crystal Polymer (LCP)

APM6-100-01.5-S-04-2-FR Application

It is suitable for data centers, communication equipment (such as 5G base stations and core network equipment), high-performance computing (such as supercomputers and computing clusters), test and measurement equipment, etc. to meet the needs of high-speed signal interconnection.
