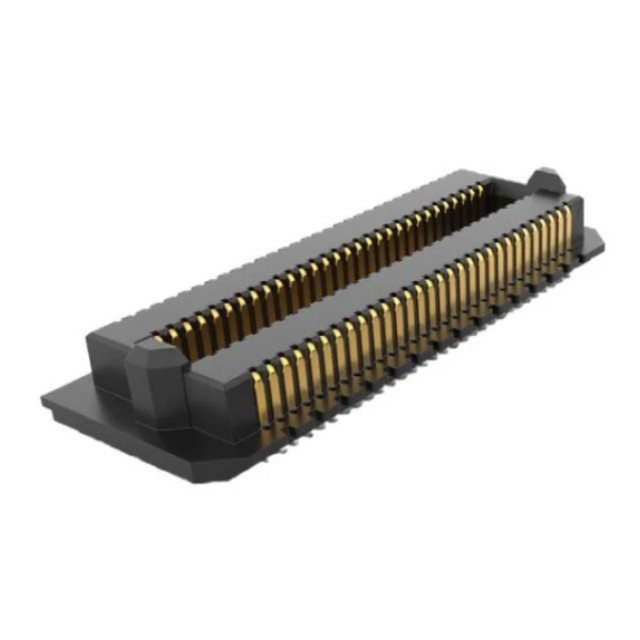

APM6-100-01.5-L-04-2-TR is an AcceleRate ® HP series high-density board-to-board connector with a 0.635 mm (0.025 inch) pitch design for high-speed signal transmission, supporting 56 Gbps NRZ/112 Gbps PAM4 data rates, PCIe ® Gen 5 and 100GbE standards.

APM6-100-01.5-L-04-2-TR Product Attributes

Product category: Board-to-board and mezzanine connectors

Products: Connectors

Number of Positions: 400 Position

Pitch: 0.635 mm (0.025 in)

Rows: 4 Row

Termination Type: Solder

Installation angle: Vertical

Stacking height: 5 mm

Current rating: 1.2 A

Voltage rating: 150 VAC

Maximum data rate: 112 Gbps

Minimum operating temperature:-55 C

Maximum operating temperature: + 125 C

Contact plating: Gold

Contact Material: Copper Alloy

Enclosure Material : Liquid Crystal Polymer (LCP)

Product Features

High-density connection: Realize more signal connection points in limited space, suitable for high-density circuit board design.

High-Performance Transmission: Supports transmission rates up to 112 Gbps PAM4 to meet high-speed signal transmission needs.

Flexible Wiring: Open terminal design, providing grounding and wiring flexibility, simplifying circuit board layout.

Cost Optimization: Provides competitive cost-effectiveness while high performance.

Reliability: Industry-standard reliability testing ensures stability and durability in harsh environments.

Application Scenarios

Data Center: Used for the connection between high-speed servers and storage devices, supporting high-density data transmission.

Communication equipment: Suitable for 5G base stations, core network equipment, etc. to meet the needs of high-speed signal processing and transmission.

High-Performance Computing: In supercomputers and high-performance computing clusters, high-speed signal interconnection is achieved.

Testing and measuring equipment: used for high-speed signal testing and measuring instruments to ensure accurate transmission and measurement of signals.
