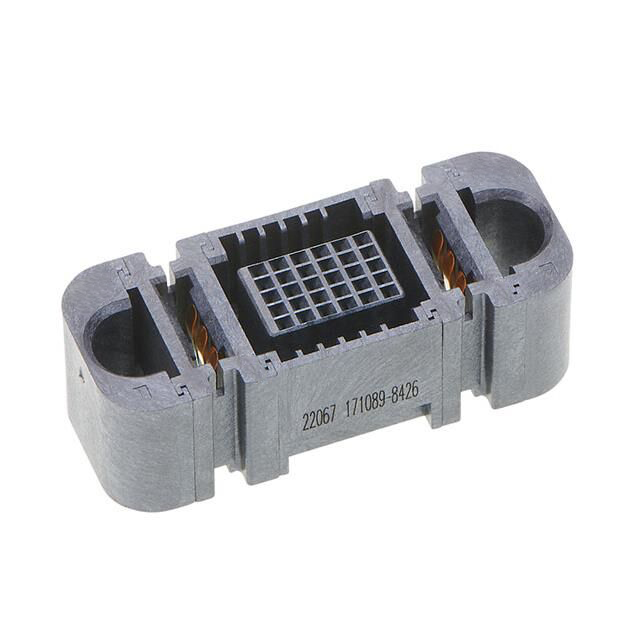

171089-8426: 32POS, EXTreme Ten60 ™ board-to-board connector

Product Description: EXTreme Ten60Power Vertical Socket with Guide Rail, 1 Split Power Circuit, 30 Signal Circuits, 1 Split Power Circuit, Press Fit Tail.

Here are the specifications and key information about the Molex 171089-8426 Board to Board Connector. This model belongs to the EXTreme Ten60 ™ series, which is specially designed for high-power transmission and is suitable for harsh environments such as industry and new energy (please refer to the official specifications for specific parameters):

1. Basic parameters

Model Number: 171089-8426

Series : EXTreme Ten60 ™

Type: Board-to-Board connector

Application: High current transmission, high density power connection scenarios.

2. Electrical properties

Maximum current per contact: 2.5 A, 30.0 A

Voltage-Max: 600V

Insulation resistance: ≥ 1000MΩ (under normal temperature and humidity conditions).

Voltage withstand strength: 1500V AC/min (between terminals).

3. Mechanical properties

Terminal Material:

Highly conductive copper alloy with gold plated surface.

Coatings optimize corrosion resistance and contact stability.

Plastic shell material:

High temperature resistant thermoplastic (UL 94 V-0 flame retardant rating).

Operating temperature range:-40 °C to + 105 °C.

Durability (plugging and unplugging times)-Maximum times: 200 times (with self-locking mechanism, anti-vibration design).

Terminal arrangement: number of rows 1, 5

Compact pitch design (pitch-plug interface: 2.00 mm, 8.00 mm).
