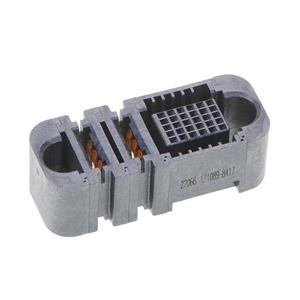

The following is a detailed introduction to the Molex 171089-8417 board-to-board connector (belonging to the EXTreme Ten60 high-power series connector):

1. Product Overview

Model Number: 171089-8417

Series: EXTreme Ten60Power 171089

Package: 32POS

Type: Board-to-Board connector

Product Description: EXTreme Ten60Power Vertical Socket with Guide Rail, 2 Split Power Circuits, 30 Signal Circuits, Press Fit Tail

2. Key features:

Connector Type: Socket, Female and Sheet Socket

Connector style: EXTreme Ten60Power

Number of needles: 32

Number of needles loaded: All

Mounting Type: Through Hole, Right Angle

Termination: Press fit

Contact layout, typical: 30 signal, 2 power supply

Features: Plate guide rail, matching guide groove

Contact surface treatment: Gold plated

Contact surface finish thickness: 30.0 µ in (0.76 µ m)

Color: Black

Current Rating (Amps): 2.5 A, 30A

Material flammability rating: UL94 V-0

Operating temperature:-40 °C ~ 105 °C

Rated voltage: 600V
