Trade Name:Board-To-Board & Mezzanine Connectors
Brand:Samtec
Particular Year:25+
Package:180POS
Delivery Date:New and original
Stock: 1000pcs

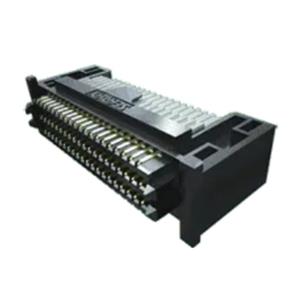

The SEAM-30-01-L-06-2-RA-GP-TR is a high speed right Angle open terminal array pin connector from Samtec that belongs to the SEAM-RA series and offers up to 56Gbps performance. The connectors feature low insertion/withdrawal forces, stack heights from 7mm to 17.5mm, and comply with IPC-A-610F and IPC J-STD-001F standards.
Technical specification
Connector type: high-density array, common
Needle number: 180
Spacing: 0.050" (1.27mm)
Number of rows: 6
Mounting type: Surface mount, right Angle
Features: plate guide, with flange
Contact surface treatment: gold plating
Contact surface treatment thickness: 10.0µin (0.25µm)
Joint stack height: -
Board height: 0.311" (7.90mm)
In summary, the SEAM-30-01-L-06-2-RA-GP-TR connector, with its high performance, high reliability and flexibility, performs well in the field of high-performance computing and high-speed data transfer, making it ideal for many high-end applications.
