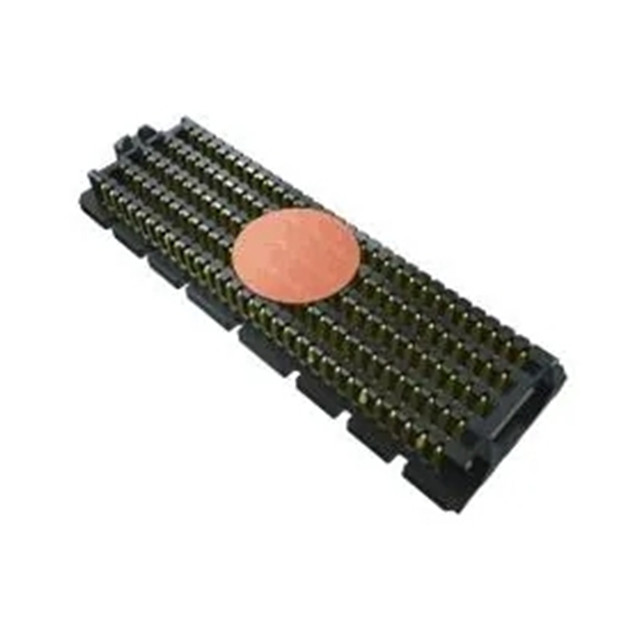

The SEAM-40-035-S-06-1-A-K-TR is A 240-position pin connector in the Samtec SEARAY™ SEAM series with 56 Gbps PAM4 performance. The connectors feature a 1.27mm footer grid for maximum cabling flexibility and up to 240 single-ended I/ OS. Other features include robust Edge Rate® contacts, low insertion and withdrawal forces, and stack heights ranging from 7mm to 17.5mm.

Core features include:

56 Gbps PAM4 performance

1.27 mm spacing

Up to 240 I/O ports

Durable Edge Rate® terminals

Rated current: Max. 2.7A

Rated voltage: up to 240 VAC/339 VDC

Stack height from 7 mm to 18.5 mm

Smaller insertion/withdrawal force

Surface welding pin

IPC-A-610F standard

IPC J-STD-001F standard

SET approved product

The Extended Life Product™ features SureCoat™ palladium nickel and flash gold plating and is certified to withstand 5.000 cycles and 150º operating temperatures.

Analog Over Array™ capability

These characteristics make the SEAM-40-03.5-S-06-1-A-K-TR connector excellent in applications requiring high speed and high reliability, especially in automotive, industrial and medical fields.
