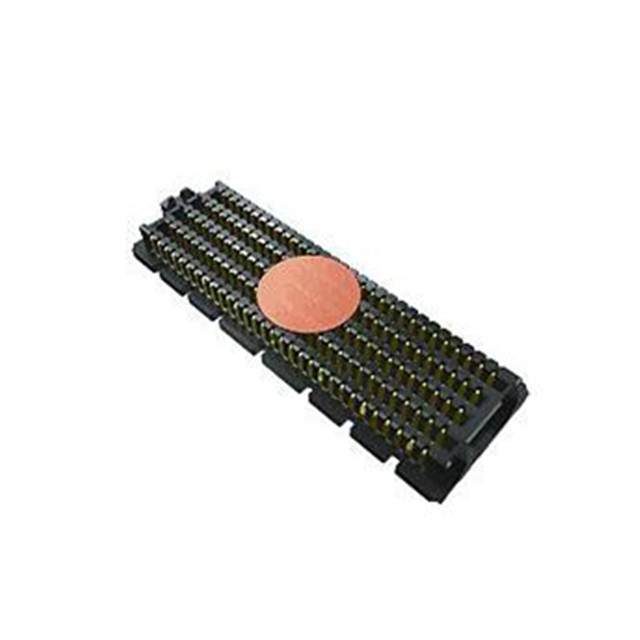

The ASP-188588-01 connector is a board-to-board and sandwich connector produced by Samtec with 560 positions and a core pitch of 1.27mm. The connector has 14 rows and features a surface mount type gold plated design ‌ conforming to UL 94 V-0 ‌.

Technical specification

Connector type: Female socket array

Number of needles: 560

Spacing: 0.050" (1.27mm)

Number of rows: 14

Mounting type: Surface mount type

Feature: VITA 57.4

Contact surface treatment: gold plating

Contact surface treatment thickness: 30.0µin (0.76µm)

Joint stack height: -

Board height: 0.221" (5.61mm)

Product Number: ASP-188588-01

Application scenario

The ASP-188588-01 connector is suitable for electronic devices requiring high-density connections, such as computers, communications equipment and industrial control systems ‌.
