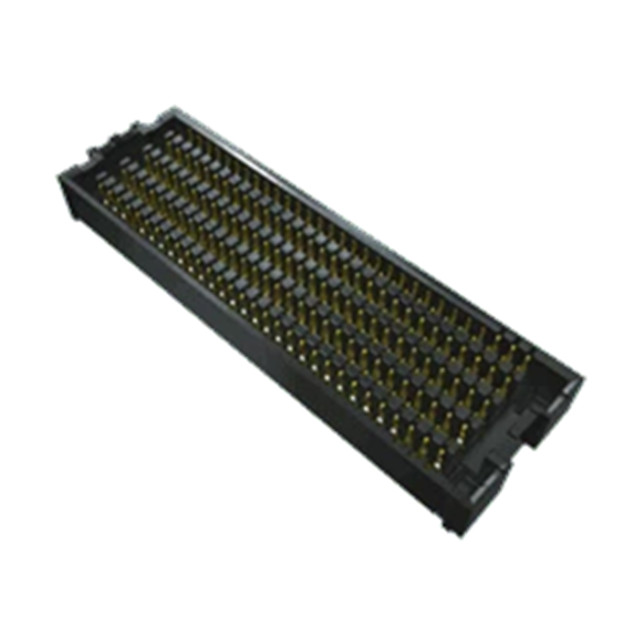

The SEAF-30-055-S-06-1-A-K-TR socket is part of the Samtec SEARAY™ SEAF series connector, featuring A 1.27mm pitch mesh and a durable Edge Rate® terminal system with up to 56Gbps performance.

Basic parameter

Connector type: High-density array, parent shape

Needle number: 180

Spacing: 0.050" (1.27mm)

Number of rows: 6

Mounting type: Surface mount type

Features: Plate guide, pick up and place

Contact surface treatment: gold plating

Contact surface treatment thickness: 30.0µin (0.76µm)

Joint stack height: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm

Board height: 0.199" (5.05mm)

Product Number: SEAF-30-055-S-06-1-A-K-TR

Application field

The SEAF-30-05.0-S-06-1-A-K-TR connector is used in a wide variety of application scenarios requiring high-density and high-performance connectivity, including but not limited to data centers, industrial control, medical devices, and aerospace.
