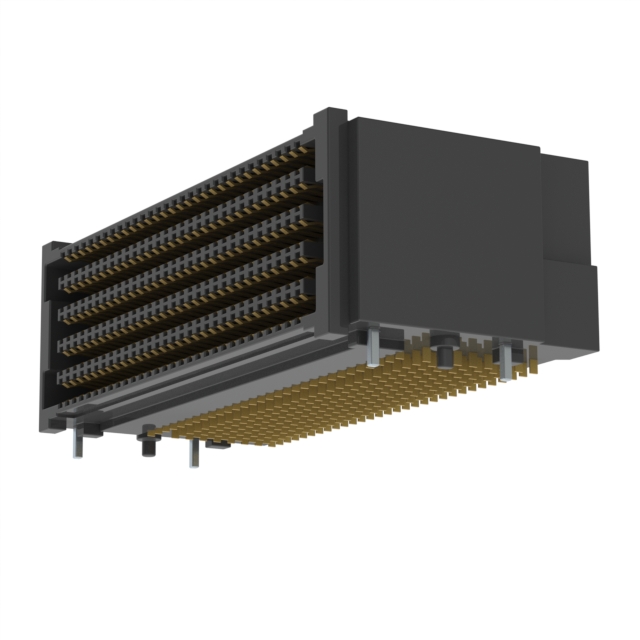

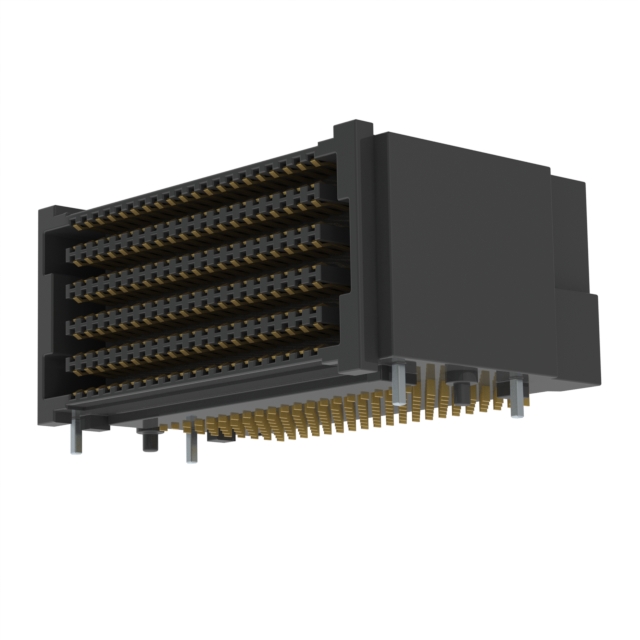

The SEAF-20-065-STL-04-1-A-K-TR is an 80-position high-density array socket connector suitable for board-to-board interconnection scenarios ‌. The connector uses four rows of 20 pin positions each to support multi-channel signal transmission ‌. The SEAF-20-065-STL-04-1-A-K-TR connector features A 1.27mm pitch mesh and a durable Edge Rate® terminal system with up to 56Gbps performance.

Basic parameter

Number of positions: 80 positions

Pitch: 1.27 mm (0.05 in)

Row number: 4 rows

Termination type: Solder

Installation Angle: Vertical

Stacking height: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm

Current rating: 2.7A

Voltage rating: 240 VAC

Data rate: 56 Gbps

Operating temperature: -55 °C to + 125°C

Application scenario

Seaf-20-065-stl-04-1-a-k-tr connectors are widely used in applications requiring high-speed, high-density connectivity, such as data centers, high-performance computing, industrial automation, and other fields. Its high-density design and high performance make it ideal for these applications ‌.
