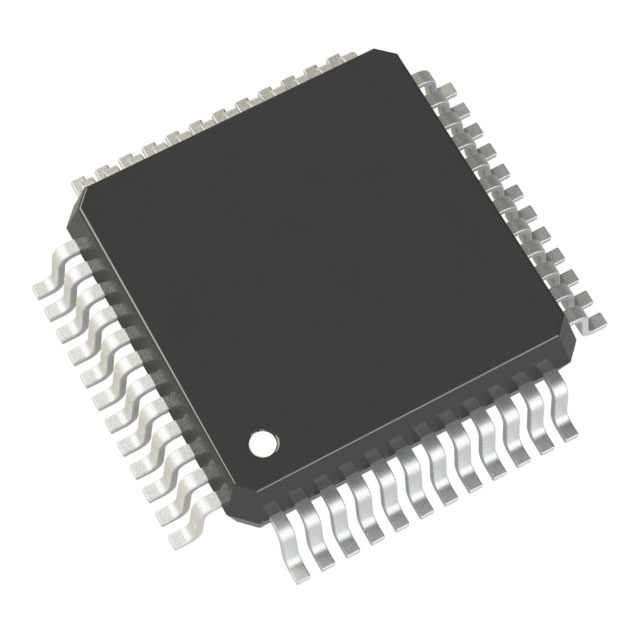

S9S12VRP64F0VLF is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. This family integrates an S12 microcontroller with a LIN Physical interface, a 5V regulator system to supply the microcontroller, and analog blocks to control other elements of the system which operate at vehicle battery level.

S9S12VRP64F0VLF is S12 MagniV Mixed Signal MCUs, Integrated solution for Relay Driver.

Product Features

Relay Driver

Integrated LIN Phy

Vreg for 12V Supply

Ultra Reliable Industria

64 or 48 Kbyte on-chip flash with ECC

512 byte EEPROM with ECC

2 Kbyte on-chip SRAM

Up to two 10mA high-current outputs

2 Kbytes of general-purpose RAM

Up to 4 x 16-bit channels for input capture or output compare

Up to 6-channel, 10-bit analog-to-digital converter

Target Applications

Anti-Pinch Window Lift

Sunroof

Automatic Doors

Power Lift Gate

Seat Adjustment

Seat Heating

Small LIN Node
