The FS32K116BRT0MFMT microcontrollers (MCUs) are a family of AEC-Q100-compliant, scalable MCUs based on the 32-bit Arm® Cortex®-M4F and Cortex-M0+ cores for general purpose automotive and high-reliability industrial applications. These families offer a scalable hardware and software compatible family with a wide range of performance, memory and feature options. the FS32K116BRT0MFMT offers ISO, CAN FD, CSEc hardware security, ASIL-B ISO26262 functional security and ultra-low power performance.

Product Attributes
Core Processor: ARM® Cortex®-M0+
Core specification: 32-bit single core
Speed: 48MHz
Connectivity: CANbus, FlexIO, I²C, LINbus, SPI, UART/USAR
Peripherals: DMA, PWM, WDT
Number of I/Os: 28
Program memory capacity: 128KB (128K x 8)
Program memory type: Flash
EEPROM Size: 2K x 8
RAM Size: 17K x 8
Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
Data Converter: A/D 13x12b SAR; D/A 1x8b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount

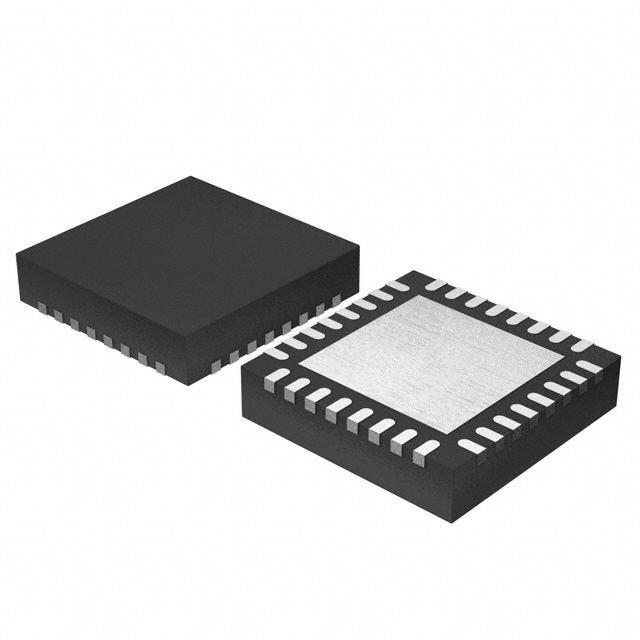

Package/Housing: 32-VFQFN Exposed Pad
Supplier Device Package: 32-HVQFN (5x5)

Applications
• Automotive
• Industrial
• Security & Surveillance
• Smart Home
• HVAC
• Motor Control
