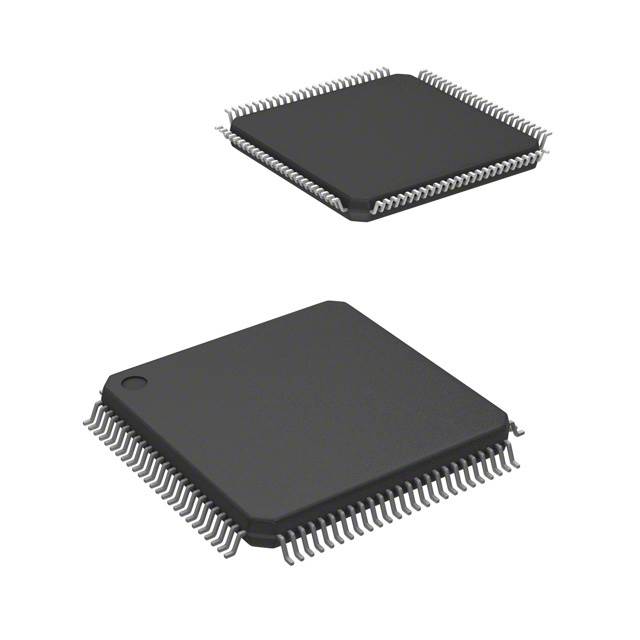

The LPC5526JBD100Y is an ARM Cortex-M33 based microcontroller for embedded applications. The device includes a CASPER Crypto/FFT engine, up to 256 KB of on-chip SRAM, up to 512 KB of on-chip Flash, PRINCE module for on-the-fly encryption/decryption of Flash, high-speed and full-speed USB host and device interfaces (full-speed crystal-less operation), SD/MMC/SDIO interfaces, five general-purpose timers, one SCTimer/PWM, one RTC/alarm timer, one 24-bit multi-rate timer, and a 24-bit multi-rate timer. /PWM, an RTC/Alarm Timer, a 24-bit Multi-Rate Timer (MRT), a Window Watchdog Timer (WWDT), nine flexible serial communication peripherals (configurable as USART, SPI, High-Speed SPI, I2C, or I2S interfaces), Programmable Logic Units (PLUs), a 16-bit 1.0 Msamples/Encryptors (PLUs), a 16-bit 1.0 Msamples/Encryptor, and a 16-bit 1.0 Msamples/Encryptor. Programmable Logic Unit (PLU), a 16-bit 1.0 Msamples/sec ADC with simultaneous conversions, comparators, and temperature sensors.

To support security requirements, the LPC55S2x also supports secure boot, HASH, AES, RSA, UUID, dynamic encryption and decryption, debug verification, and TBSA compliance.

Product Attributes

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit

Speed: 150MHz

Connectivity: Flexcomm, I²C, SDIO, SPI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, RNG, WDT

Number of I/O: 64

Program memory capacity: 256KB (256K x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 144K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 10x16b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 100-LQFP Exposed Pad

Supplier Device Package: 100-HLQFP (14x14)
